RMStator Spylt Stator Kit With Flywheel And Cover Gasket RMS020-107990
Customer Ratings
RMStator Spylt Stator Kit With Flywheel And Cover Gasket RMS020-107990
RMStator Spylt Stator Kit With Flywheel And Cover Gasket RMS020-107990
Brand new REVOLT Voltage Regulator
Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!
RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors' products on the market
SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.
DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.
PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.
LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.
Join REVOLT, the new era of voltage regulation!
Solve your Polaris RZR & Sportsman charging system issues today, once and for all, with RMSTATOR!
IMPORTANT NOTICE: This kit includes two wiring harness according to Polaris recal # Z-16-01-C (OEM # 2206620, 2206367,2206473). We strongly suggest you to relocate both of your regulators to make sure they do not wear out prematurely due to mud, dust or rocks.
All item pictures are accurate, matching exactly what you will receive.
Technical Data

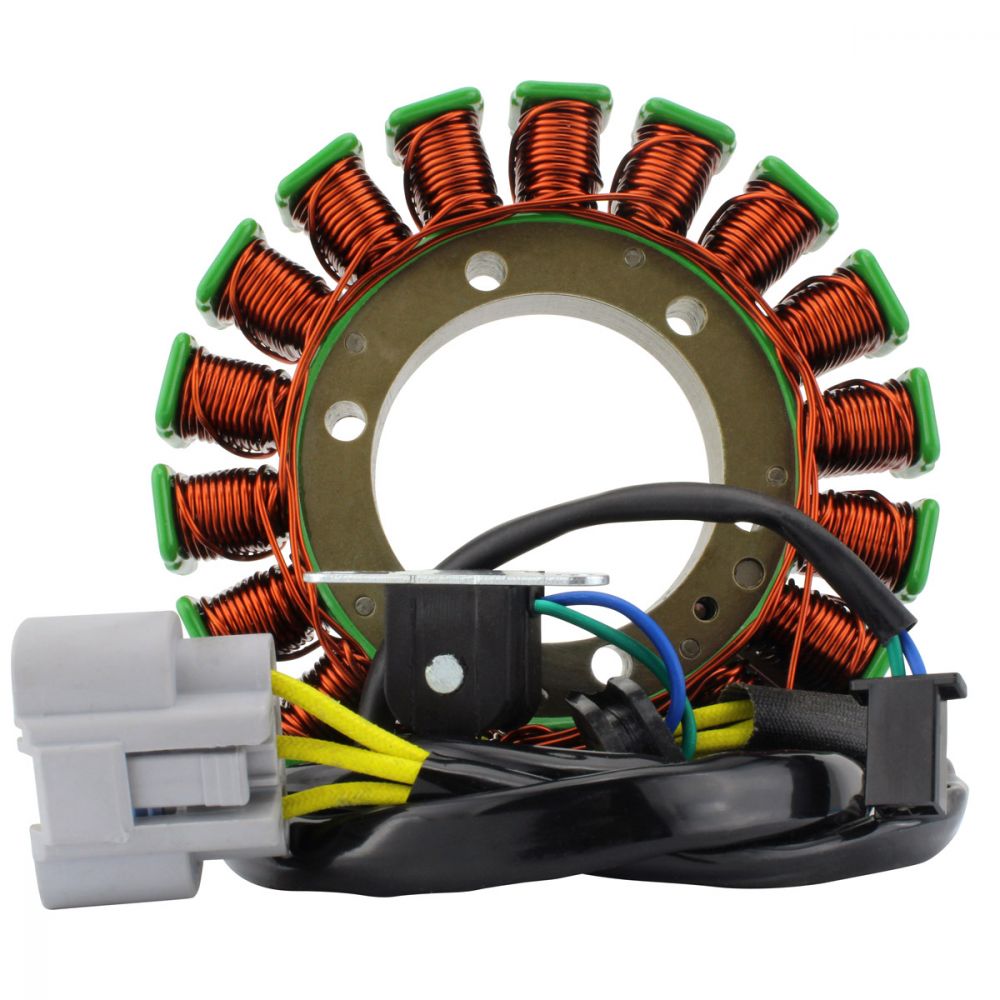

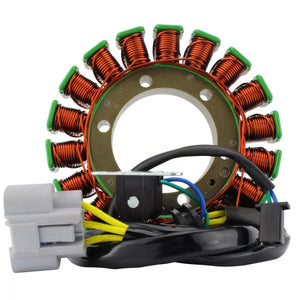

Dual Output Stator Dimensions :
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 26 mm
Length of wires Stator to grommet : 125 mm
Length of wires grommet to plug : 290 mm & 550 mm
Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Number of poles : 18
Wire to wire resistance :
Alternator: Yellow/Black to Yellow/Black = 0.5 ohms +-20%
Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C
Harness :
Wires length : 620 mm
Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 2
Flywheel Dimensions :
Exterior Diameter: 140.6 mm
Interior Diameter: 127.8 mm
Interior Diameter Center Housing: 22.4 mm
Exterior Diameter Center Housing: 50 mm
Thickness (exterior): 49.3 mm
Thickness (interior): 38.7 mm
Diameter of the Shaft largest to the narrowest :
- 37.4 mm
- 27.8 mm
- 22.4 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-107990
Fitment:
- 2016-2018 Polaris ACE 900 XC Edition
- 2016-2018 Polaris General 1000 EPS
- 2017-2018 Polaris General 4 1000
- 2017-2018 Polaris Ranger 900 Diesel
- 2014-2017 Polaris Ranger Crew 900
- 2017-2018 Polaris Ranger Crew XP 1000
- 2017-2018 Polaris Ranger Crew XP 900
- 2017-2018 Polaris Ranger XP 1000
- 2013-2018 Polaris Ranger XP 900
- 2014-2018 Polaris RZR 4 900 EPS
- 2013-2014 Polaris RZR 4 900 EPS INTL
- 2014-2018 Polaris RZR 4 XP 1000 EPS
- 2013 Polaris RZR 4 XP 900
- 2015 Polaris RZR 4 XP 900
- 2014-2018 Polaris RZR 900
- 2014 Polaris RZR 900 INTL
- 2015-2017 Polaris RZR S 900
- 2016-2018 Polaris RZR XP Turbo 900
- 2014-2018 Polaris RZR XP 1000 EPS
- 2014 Polaris RZR XP 1000 EPS INTL
- 2016-2018 Polaris RZR XP 4 Turbo EPS 900
- 2013 Polaris RZR XP 900
Note: Image is for reference only, actual product may vary slightly.
