RMStator Mosfet Regulator RMS022-106222
RMStator Mosfet Regulator RMS022-106222

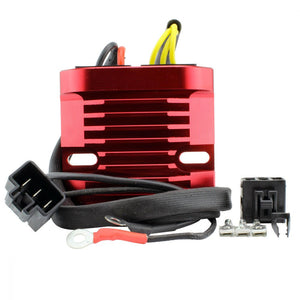

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator
Our new RMSTATOR machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATOR red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Technical Data
Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 811 mm & 350 mm
Fixation holes center to center: 75 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS022-106222
Fitment:
- 2001-2004 Honda CBR600F4i
- 2001-2002 Honda CBR900RR
- 2001 Honda CBR900RR RE
- 2001 Honda CBR929RE
- 2000-2001 Honda CBR929RR
- 2002-2009 Honda Interceptor 800 VFR800
- 2017-2020 Triumph Bonneville
- 2017-2020 Triumph Bonneville 900
- 2017-2020 Triumph Bonneville Bobber
- 2018-2020 Triumph Bonneville Speedmaster
- 2017-2020 Triumph Bonneville T100
- 2016-2020 Triumph Bonneville T120
- 2006-2020 Triumph Daytona 675
- 2006-2020 Triumph Daytona 675R
- 2019-2020 Triumph Rocket III 2300
- 2019-2020 Triumph Scrambler 1200
- 1994-2018 Triumph Speed Triple 1050
- 2020 Triumph Speed Triple 1050
- 1994-1998 Triumph Speed Triple 900
- 1999-2004 Triumph Speed Triple 955
- 2011-2017 Triumph Speed Triple R 1050
- 2019-2020 Triumph Speed Triple R 1050
- 1994-2020 Triumph Speed Triple S 1050
- 2017-2020 Triumph Street Cup
- 2017-2020 Triumph Street Scrambler
- 2007-2020 Triumph Street Triple 675
- 2008-2020 Triumph Street Triple R 675
- 2018-2020 Triumph Street Triple R 765
- 2018-2020 Triumph Street Triple RS ABS 765
- 2019-2020 Triumph Street Triple S ABS 660 A2
- 2019-2020 Triumph Street Triple S ABS 765
- 2016-2017 Triumph Street Twin 900
- 2017-2018 Triumph Thruxton 1200
- 2017-2018 Triumph Thruxton 1200 R
- 2017-2020 Triumph Thruxton RS 1200
- 2009-2017 Triumph Thunderbird 1600 Standard
- 2009-2017 Triumph Thunderbird 1700 Standard
- 2009-2018 Triumph Thunderbird 1700 LT
- 2009-2017 Triumph Thunderbird Commander 1600
- 2009-2017 Triumph Thunderbird Commander 1700
- 2009-2018 Triumph Thunderbird LT 1600
- 2009-2018 Triumph Thunderbird Storm 1600
- 2009-2018 Triumph Thunderbird Storm 1700
- 2011-2017 Triumph Tiger 800
- 2010-2020 Triumph Tiger 800 XC
- 2010-2020 Triumph Tiger 800 XR
Note: Image is for reference only, actual product may vary slightly.
