RMStator Stator And Voltage Regulator Rectifier Kit RMS900-100114
Customer Ratings

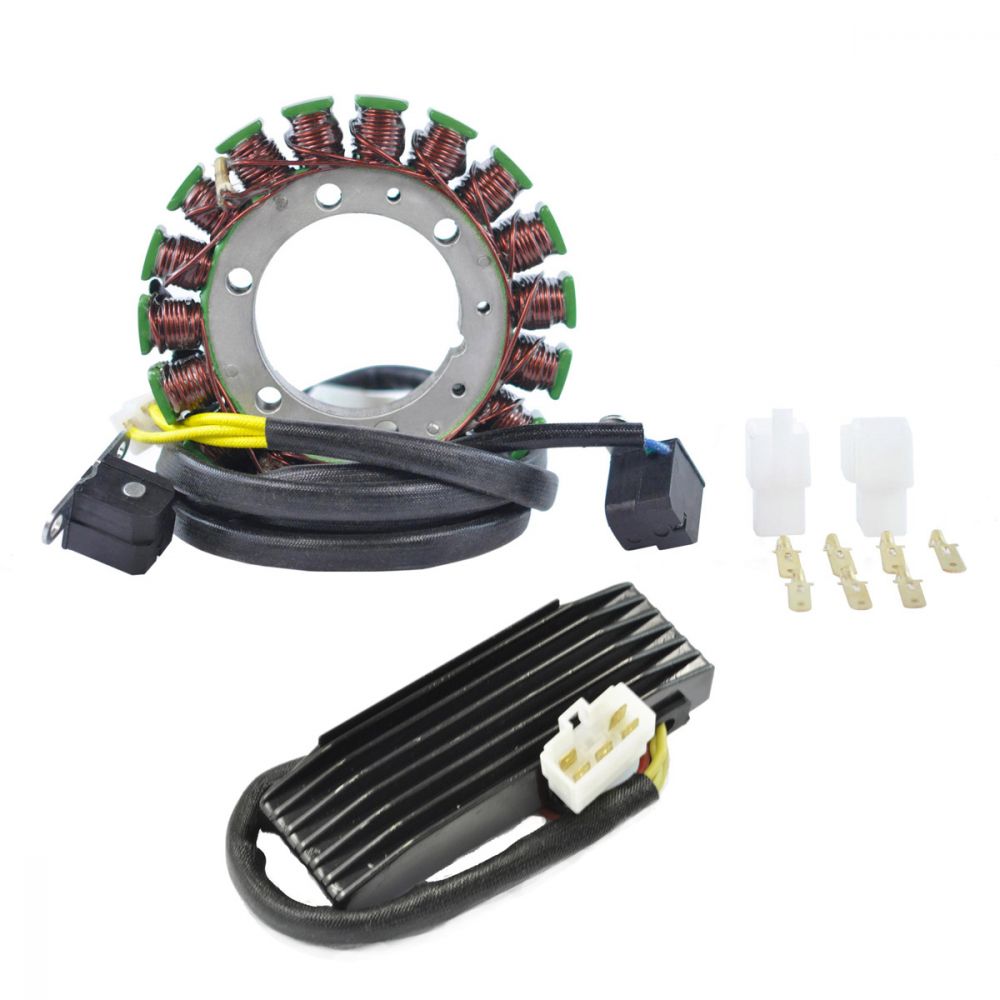

RMStator Stator And Voltage Regulator Rectifier Kit RMS900-100114
RMStator Stator And Voltage Regulator Rectifier Kit RMS900-100114
Brand New Kit Stator + Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Connector included
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Rubber grommet included
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Voltage Regulator Rectifier- The Quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
Technical Data
Stator
Dimensions :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 18mm
Length of wires stator to grommet : 200mm
Length of wires grommet to plug : 620mm
Length of pickup coil's wire to grommet : 90mm & 170mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to Green = 200 ohms +/-20%
Source : Black to Yellow = 200 ohms +/-20%
Dimensions:
Width: 50mm
Length: 145mm
Height: 25mm
Wires length: 440mm
Other specifications:
Number of plugs: 1
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-100114
Fitment:
- 2005-2009 Suzuki Boulevard S83
- 1996-2004 Suzuki Intruder 1400 VS1400GLP
Note: Image is for reference only, actual product may vary slightly.
