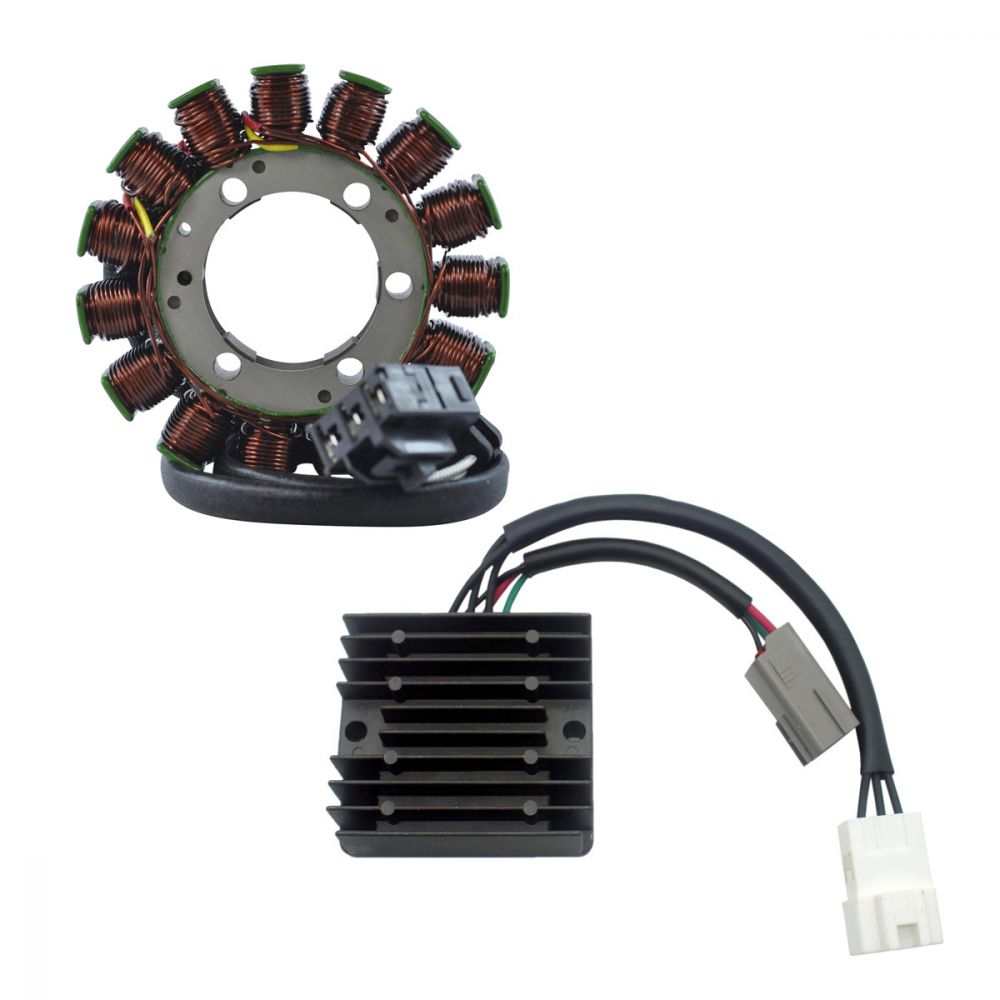

RMStator Stator And Voltage Regulator Rectifier Kit RMS900-100117

Brand New Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Connector included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Rubber grommet included

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components.

Technical Data

Stator

Dimensions :

Interior diameter : 43.4mm
Exterior diameter : 105mm
Thickness : 16.5mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 500mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : White to White = 0.4ohms +/-20%

Dimensions :
Width : 80mm
Length : 94mm
Height: 30mm
Wires length : 300mm 187mm
Fixation holes center to center : 73mm

Other specifications :
Number of plugs : 2
Number of pins : 6
Number of wires: 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-100117

Fitment:

• 2007-2008 Kawasaki Ninja ZX6R ZX600F

Note: Image is for reference only, actual product may vary slightly.
