RMStator Stator And Voltage Regulator Rectifier Kit RMS900-100119
Customer Ratings
RMStator Stator And Voltage Regulator Rectifier Kit RMS900-100119
RMStator Stator And Voltage Regulator Rectifier Kit RMS900-100119
YOU SAVE 15% off the items price combined, when buying a kit.

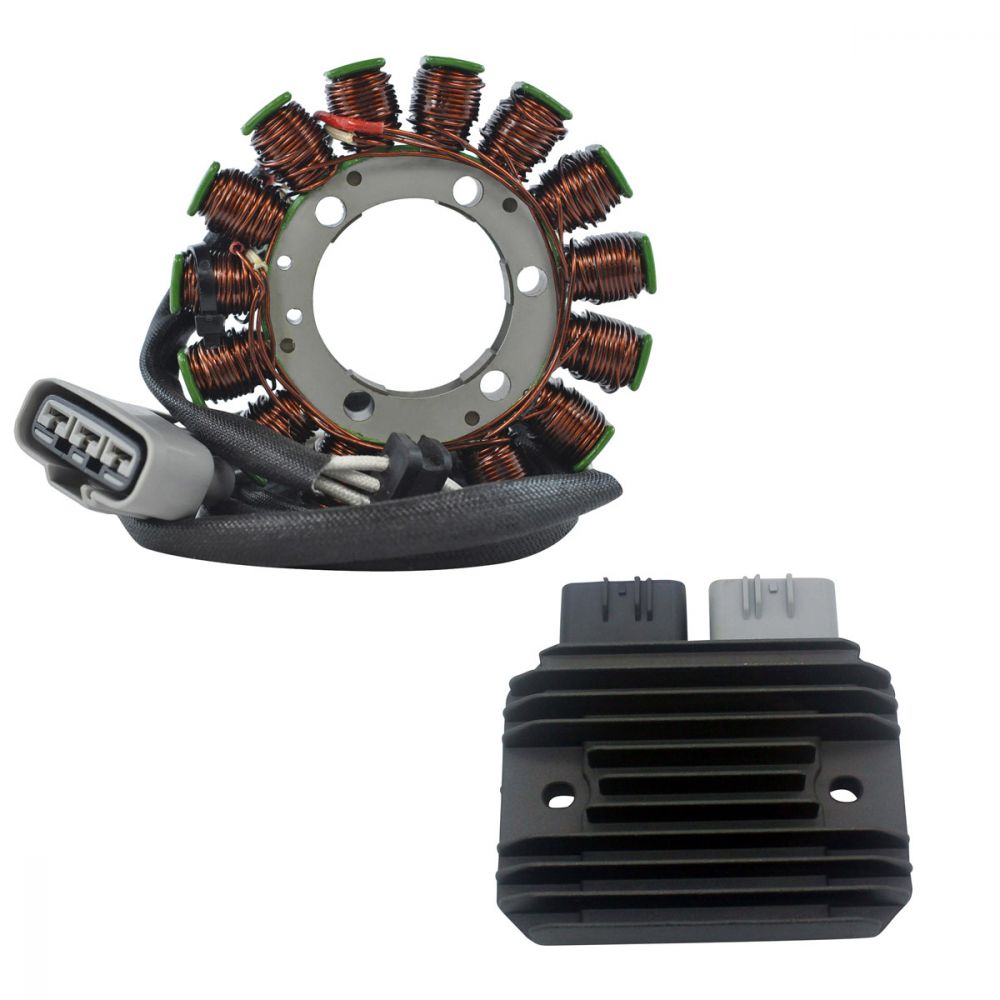

Brand New Kit Stator + Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Connector included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Stator- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Rubber grommet included
- The Quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components.
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Technical Data
Stator
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 106 mm
Thickness : 15 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 775 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White Between Each White = 0.04 ohms +/-20%
Dimensions :
Width : 50mm
Length : 145mm
Height: 25mm
Wires length : 600mm
Other specifications :
Number of plugs : 2
Number of pins : 8
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-100119
Fitment:
- 2009-2012 Kawasaki Ninja ZX6R ZX600F
Note: Image is for reference only, actual product may vary slightly.
