RMStator Stator CDI Box RMS900-100216

RMStator Stator CDI Box RMS900-100216

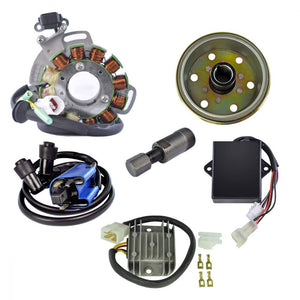

Brand New Kit Stator 200 W + Voltage Regulator Rectifier + Flywheel + Puller + External Ignition Coil + PeakRPM CDI Box

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Connector included
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Rubber grommet included
• Back Plate included

• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Please note that the connector is not the same as the original. You must install the opposite connectors included in the box for the kit to work on Banshee's

RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Yamaha, this flywheel can be used as a direct replacement to the OEM.

We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.

• 27 MM x 1.0 Left hand male
• Includes crankshaft thread protector cap

• Highest grade of lamination materials
• Spark plug cap(s) included

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

Technical Data

High Output Stator 200 W

Dimensions :

Interior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil's wire to grommet : 80mm

Other specifications :

Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :

Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%

Dimensions :
Width : 55mm
Length : 67mm
Height: 22mm
Fixation holes center to center : 55mm
Wires length: 140mm

Other specifications :
Number of plugs : 1
Number of pins : 4
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Dimensions:
Exterior Diameter: 128mm
Interior Diameter: 105mm
Interior Diameter Center Housing: 21mm
Exterior Diameter Center Housing: 34mm
Thickness (exterior): 12mm
Thickness (interior): 7mm

Bracket center to Bracket: 90 mm
Wires length: 590 mm
Primary Resistance: 0.4 ohms
Secondary Resistance: 6.0K ohms
Spark plug cap Resistance: 5K
Voltage Transfer Ratio: 150:1
Insulation Resistance: >1000M

Dimensions:
Height: 26 mm
Length: 87
Width: 72 mm
Fixation holes center to center: 85mm

Other specifications:

Number of plugs: 2
Number of pins: 8

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-100216

Fitment:

• 1999-2006 Yamaha Banshee 350 YFZ350

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
RMS900-100216
