RMStator 90W Lighting Upgrade Kit including Stator + AC Voltage Regulator

How about enjoying a night ride with your kid? The Honda TRX90's are excellent ATV's to have fun with during the day, but their lack of lighting makes them dangerous when the sun goes down.

Introducing RMSTATOR's new Honda TRX90 lighting kit!

Our new lighting generator kit allows you to install the headlight & tail light of your choice on your TRX90. And with 90W of output, our generator delivers!

Ease of installation

The stator is a direct replacement of your OEM, including the pickup coil, rubber grommet, and connector for a plug & play installation. We also provide complete installation instructions.

Included in the kit:

• Heavy duty enhanced stator
• 500W rated AC voltage regulator
• Dielectric connector grease
• Complete installation instructions

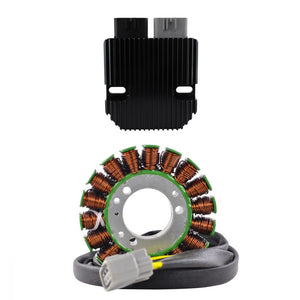

Brand new Kit High Output Stator + AC Regulator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

High Output Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included ( We DO NOT include the small secondary grommet. You must re-install your original secondary grommet )

AC regulator

• No assembly required
• The Quality exceeds the OEM equipment
• Higher grade of electric components

Please note : One wire will be grounded to the rectifier body

Technical Data

High Output Stator :

Dimensions :
Interior diameter : 28 mm
Exterior diameter : 83 mm
Thickness : 8 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 260 mm
Length of pickup coil's wire to grommet : 150 mm

Other specifications :
Number of wires : 5
Number of plugs : 5
Number of pins : 5

Wire to wire resistance :

Alternator : Ground to Yellow = 0.4 ohms +/-20%
Pickup : Blue/Yellow to Ground = 150 ohms +/-20%
Source : Black/Red to Green = 500 ohms +/-20%

AC regulator :

Dimensions :
Width : 15 mm
Height : 48 mm
Fixation holes center to center : 60 mm

Other specifications :
Number of plugs : 0
Number of pins : 1
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 25 A - 35 A / 300 W - 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20? to 85?


Please note : One wire will be grounded to the rectifier body

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-103448

Fitment:

• 1993-2005 Honda Sportrax 90 TRX90 2x4

Note: Image is for reference only, actual product may vary slightly.
