RMStator Stator Voltage Regulator Kit RMS900-103608

RMStator Stator Voltage Regulator Kit RMS900-103608

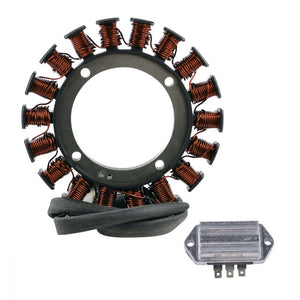

Brand new stator + voltage regulator rectifier kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• All product shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Stator

Brand new aftermarket stator

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

Voltage Regulator Rectifier

Brand new aftermarket voltage regulator rectifier

• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment

Technical Data

Stator
Dimensions :
Interior diameter : 78 mm
Exterior diameter : 138 mm
Thickness : 10 mm
Length of wires stator to terminal : 650 mm

Other specifications :

Number of wires : 2
Number of pins : 3

Wire to wire resistance :

Alternator : White To White = 0.4 ohms +/-20%

Voltage regulator rectifier
Dimensions :
Width : 37 mm
Length : 80 mm
Height : 18 mm
Fixation holes center to center : 68mm

Other specifications :
Number of plugs : 1
Number of terminals : 3

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-103608

Fitment:

• All Kohler CH11-CH15
• All Kohler CV11-CV15
• All Kohler KT17
• All Kohler KT19

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
RMS900-103608
