RMStator Stator and CDI Box Kit RMS900-105940

RMStator Stator and CDI Box Kit RMS900-105940

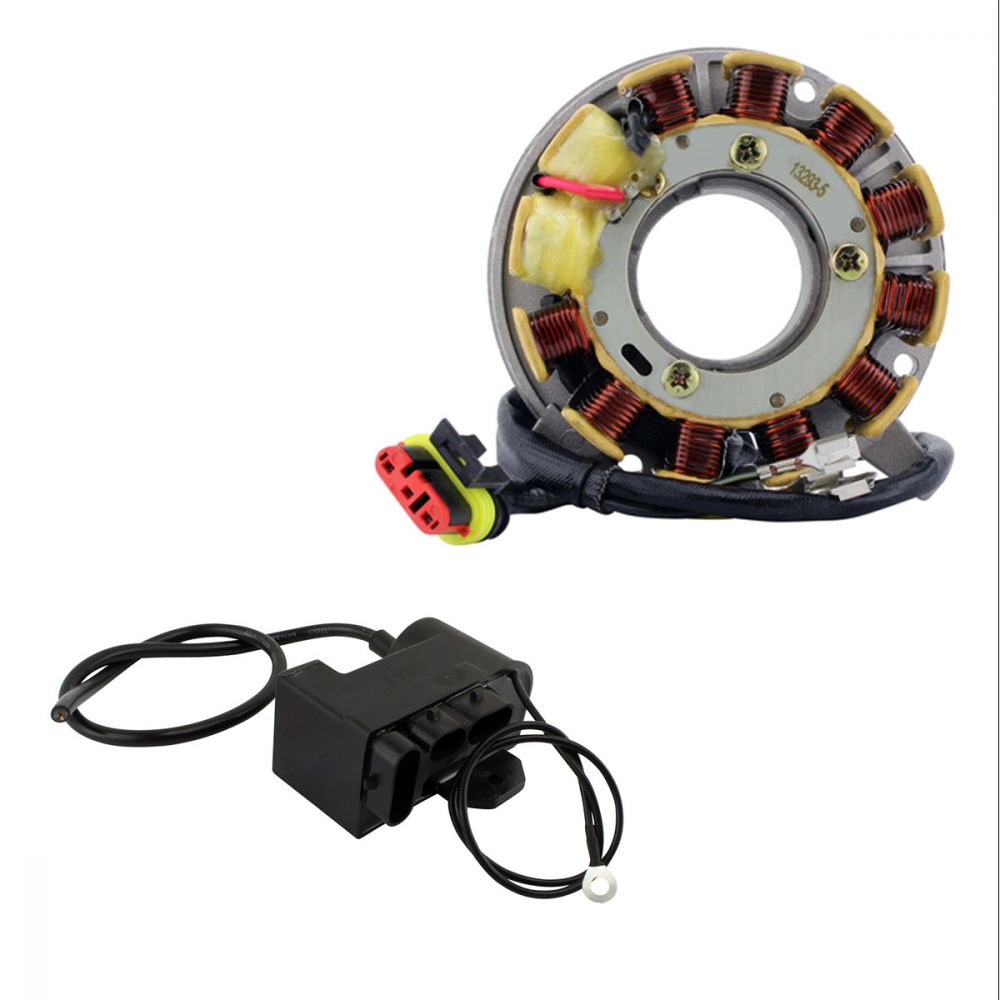

Brand New aftermarket CDI Box + Stator Kit

Brand new aftermarket CDI box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Enjoy fast & easy installation with our plug & play design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Back Plate included
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

CDI Dimensions
Height: 44 mm
Length: 94 mm
Width: 48 mm
Fixation holes center to center: 72 mm

Other specifications:

Number of plugs: 3
Number of pins: 9

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this; we recommend that you rule everything else out before replacing the CDI box.

Stator Dimensions
Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires clamp to plug : 500 mm

Other specifications :

Number of wires : 6
Number of plugs : 1
Number of pins : 6
Number of poles : 12

Wire to wire resistance :
Alternator : Between each yellow = 0.4 ohms +-20%
Source : Red to Black = 8 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-105940

Fitment:

• 1998 Ski-doo Tundra R 280 Carb F/C
• 2000 Ski-doo Tundra R 280 Carb F/C
• 2002-2005 Ski-doo Tundra R 280 Carb F/C

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
105940-R00
