RMStator Stator and CDI Box And Gasket Kit For 2004-2005 Honda TRX450R RMS900-106198

Brand new aftermarket Stator + PeakRPM CDI Box + Gasket Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand new aftermarket Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Brand new aftermarket PeakRPM CDI Box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

Brand new Stator Crankcase Cover Gasket

Technical Data

STATOR Dimensions :
Interior diameter : 34 mm
Exterior diameter : 92 mm
Thickness : 15 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 900 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :

Number of wires : 8
Number of plugs : 3
Number of pins : 8
Number of poles : 17

Wire to wire resistance :

Alternator 3p : Between each Yellow = 0.4 ohms +-20%
Alternator 1p: Yellow to ground = O.L
Pickup : Green to Blue = 250 ohms +-20%
Source #1: Black/Red to Blue = 36 ohms +-20%
Source #2: Blue to White = 7 ohms +-20%

CDI BOX Dimensions:
Height: 26 mm
Length: 75 mm
Width: 70 mm

Other specifications:

Number of plugs: 2
Number of pins: 14

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this; we recommend that you rule everything else out before replacing the CDI box.

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-106198

Fitment:

• 2004-2005 Honda TRX450R

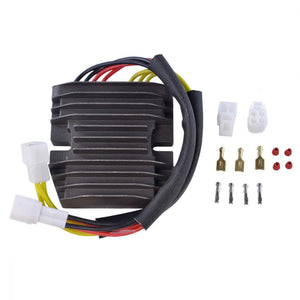

Note: Image is for reference only, actual product may vary slightly.
