RMStator Flywheel Kit RMS900-106628

RMStator Flywheel Kit RMS900-106628

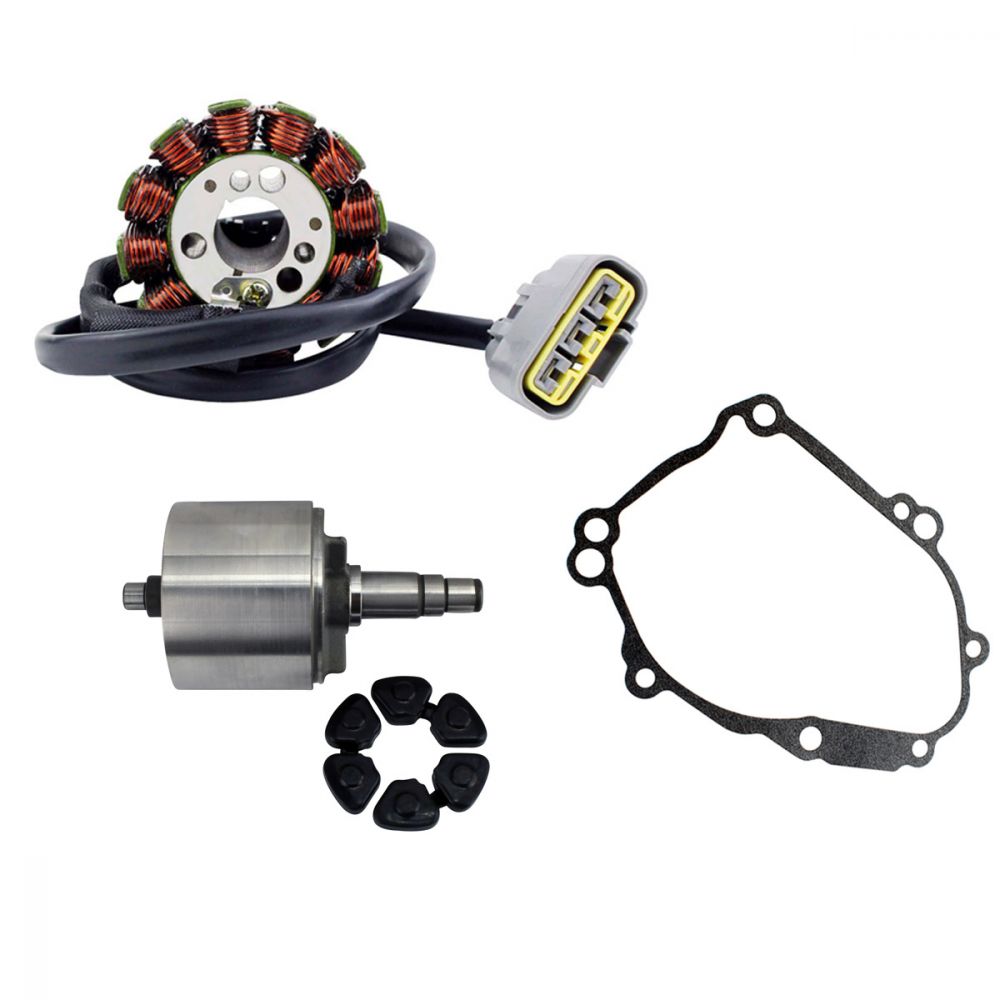

Brand new aftermarket Stator + Improved Flywheel + Gasket

• Crankcase cover gasket included
• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

Flywheel

Introducing our newest Heavy Duty Flywheel Rotor For Yamaha Motorcycles

Anyone who rides or repairs a Yamaha YZF R1, FZ1 or FZ8 is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.

A Heavy Duty Flywheel to the rescue!

New RMSTATOR heavy-duty flywheel rotor for Yamaha Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Features

• Built to OEM size
  Fits precisely in your ride: install it and forget it.

• Improved epoxy
  Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

• High grade steel capping
  Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

• Precise balancing
  Eliminates crankshaft vibrations for longer engine longevity.

• Shop with confidence
  Two years warranty. All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!

Why cheap repairs won't work?

Quick stronger epoxy fixes do repair flywheels in short term. It might however impair long term performance and reliability of your ride.

Remaining OEM magnets:
Original magnets remaining can still come loose at any time.

Magnet alignment:
The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.

Magnet spacing:
Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damages.

Incorrect replacement magnets:
The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.

Wrong epoxy properties:
Epoxy that is not rated to permanently handle high temperatures can quickly cause a serious failure.

Oil contamination:
Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.

All these reasons make us strongly recommend that you replace your broken flywheel with our new heavy duty flywheel.

Technical Data

Stator Dimensions:
Interior diameter : 18 mm
Exterior diameter : 68 mm
Thickness : 42 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 500 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :

Alternator : Between each White = 0.4 ohms +/-20%

Flywheel Dimensions:
Exterior Diameter: 80 mm
Interior Diameter: 69 mm
Interior Diameter Center Housing: 12 mm
Exterior Diameter Center Housing: 18 mm
Thickness (exterior): 11 mm
Thickness (interior): 6 mm

Diameter of the Shaft largest to the narrowest:

• 26 mm
• 20 mm
• 18 mm
• 15 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-106628

Fitment:

• 2006-2014 Yamaha FZ1 1000
• 2006-2014 Yamaha FZ1 N Fazer 1000
• 2011-2013 Yamaha FZ8 800
• 2011-2013 Yamaha FZ8 N Fazer 800
• 2015 Yamaha FZS1
• 2015 Yamaha FZS1 Fazer
• 2004-2008 Yamaha YZF R1 1000

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
106628-R00
