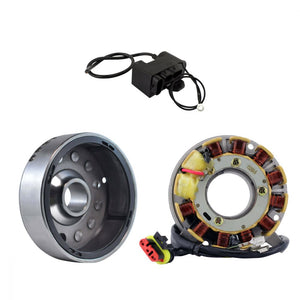

RMStator Stator Kit With Flywheel , CDI Box And Ignition Coil RMS900-107040

Brand new aftermarket Stator + CDI Box Ignition Coil Calibration Module + Flywheel Kit

• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Back Plate included

• Our part is a Plug-and-play unit, direct fit, and easy to install
• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

This flywheel can be used as a direct replacement to the OEM.

Technical Data

Stator Dimensions:

Interior diameter: 43 mm
Exterior diameter: 110 mm
Thickness: 32 mm
Length of wires clamp to plug: 500 mm

Other specifications:

Number of wires: 6
Number of plugs: 1
Number of pins: 6
Number of poles: 12

Wire to wire resistance :
Alternator: Yellow between each yellow = 0.4 ohms +-20%
Alternator to ground = O.L
Source: Red to black = 8 ohms +-20%

Height: 44 mm
Length: 94 mm
Width: 48 mm
Fixation holes center to center: 72 mm

Other specifications:

Number of plugs: 3
Number of pins: 9

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this; we recommend that you rule everything else out before replacing the CDI box.

Exterior Diameter: 117 mm
Interior Diameter: 96 mm
Interior Diameter Center Housing: 24 mm
Exterior Diameter Center Housing: 35 mm
Thickness (exterior): 46 mm
Thickness (interior): 23 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-107040

Fitment:

• 1998 Ski-doo Tundra R 280 Carb F/C
• 2000 Ski-doo Tundra R 280 Carb F/C
• 2002-2005 Ski-doo Tundra R 280 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
