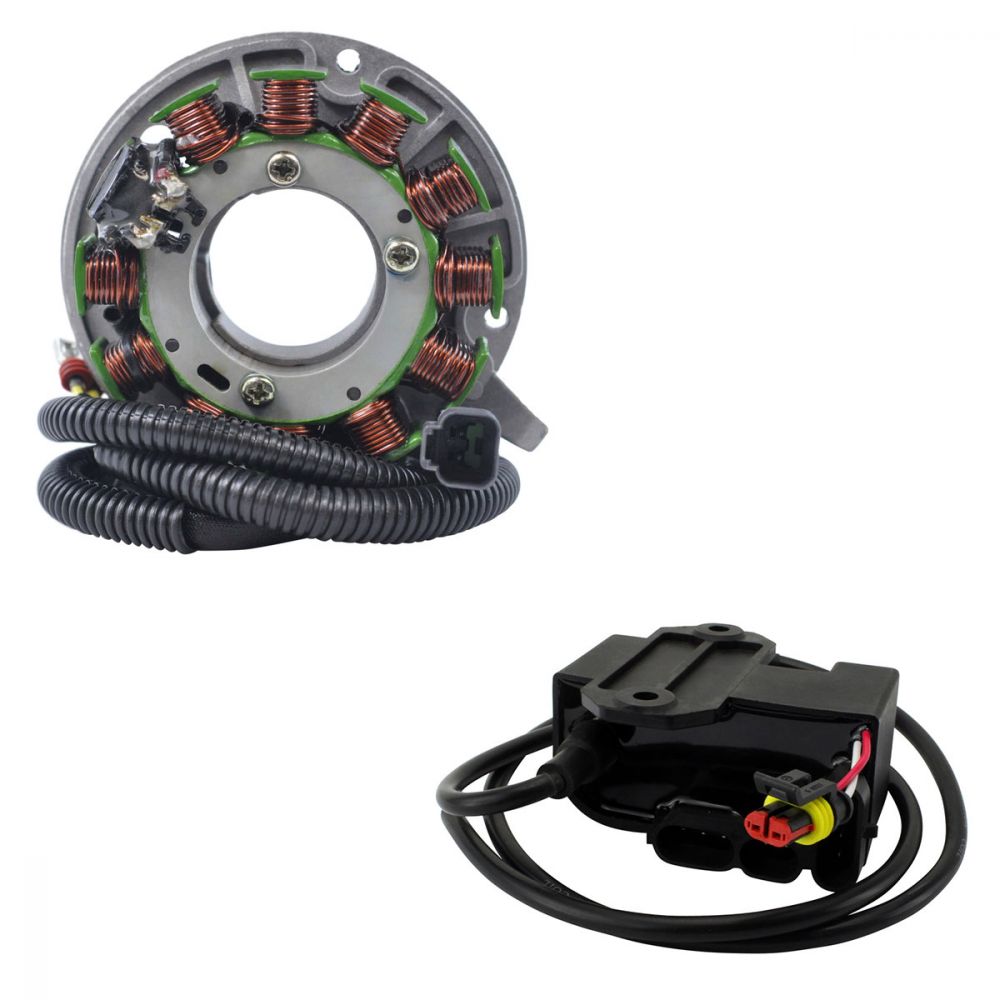

RMStator Stator + Cdi Kit RMS900-107890

Brand New Kit Stator + Ignition Controller Coil (CDI)

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

Technical Data

StatorDimensions :
Interior diameter : 44 mm
Exterior diameter : 96 mm
Thickness : 18 mm
Length of wires stator to connector: 420 mm & 550 mm

Other specifications :

Number of wires : 4
Number of plugs : 2
Number of pins : 4

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Source : Black to Red = 0.8 ohms +/-20%

CDI

Dimensions:
Height: 49 mm
Length: 95 mm
Width: 88 mm
Fixation holes center to center: 72 mm

Other specifications:

Number of plugs: 4
Number of pins: 7

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this; we recommend that you rule everything else out before replacing the CDI box.

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-107890

Fitment:

• 2011-2019 Ski-Doo Expedition 550F Sport Carb F/C
• 2010-2015 Ski-Doo Grand Touring 550F Sport Carb
• 2014 Ski-Doo MXZ 550F Sport Carb
• 2010-2011 Ski-Doo MXZ 550F TNT Carb
• 2011-2012 Ski-Doo MXZ 550F Sport Carb
• 2014 Ski-Doo Renegade 550F Sport Carb
• 2010-2012 Ski-Doo Renegade 550F Sport Carb
• 2008 Ski-Doo Skandic 550F SWT Carb
• 2008 Ski-Doo Skandic 550F WT Carb
• 2010 Ski-Doo Skandic 550F Tundra LT Carb
• 2012 Ski-Doo Skandic 550F WT Carb
• 2014-2015 Ski-Doo Skandic 550F SWT Carb
• 2014-2019 Ski-Doo Skandic 550F WT Carb
• 2017-2019 Ski-Doo Skandic 550F SWT Carb
• 2015 Ski-Doo Tundra 550F Sport
• 2014-2019 Ski-Doo Tundra 550F LT
• 2017-2019 Ski-Doo Tundra 550F Sport

Note: Image is for reference only, actual product may vary slightly.
