RMStator Stator with Regulator, CDI Box and Harness Kit RMS900-108120

RMStator Stator with Regulator, CDI Box and Harness Kit RMS900-108120

Brand New High Output Stator + Magneto Flywheel Rotor + Regulator + CDI + Harness

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new High output stator

• High output stator generating 140W available for added accessories
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Brand new Magneto Flywheel Rotor

• The quality exceeds the OEM equipment
• All products shipped are tested

Brand new Voltage regulator rectifier

• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

Brand new PeakRPM CDI Box

• Our part is a Plug-and-play unit, direct fit, and easy to install.
• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components.
• The Quality exceeds the OEM equipment
• All products shipped are tested

Technical Data

Specifications of Stator:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 180 mm
Length of wires grommet to plug: 980 mm
Length of pickup coil's wire to grommet: 95 mm

Other specifications:

Number of wires: 4
Number of plugs: 2
Number of pins: 4

Wire to wire resistance:
Alternator: White to Yellow = 0.3ohms +/-20%
Pickup: White to Red = 264ohms =+/-20%

Specifications of Flywheel:

Dimensions:
Exterior Diameter: 100.4 mm
Interior Diameter: 86.5 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 28 mm & 33 mm

Specifications of Regulator:

Dimensions:
Width: 66 mm
Length: 78 mm
Height: 27 mm
Wires length: 465 mm
Distance between fixation holes center to center: 62 mm

Other specifications:
Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20&degC to 85&degC

Specifications of CDI:

Dimensions:
Height: 36 mm
Length: 86 mm
Width: 81 mm
Other specifications:
Number of plugs: 2
Number of pins: 12

Specifications of Harness:

Dimensions:
Length: 250 mm
Number of plugs: 2
Number of pins: 8

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-108120

Fitment:

• 2004-2009 Yamaha YFZ450
• 2012-2013 Yamaha YFZ450
• 2024 Yamaha YFZ450RSE
• 2004-2008 Yamaha YFZ450SE Special Edition
• 2007-2008 Yamaha YFZ450SE2 Special Edition II
• 2006-2007 Yamaha YFZ450V Bill Balance Edition

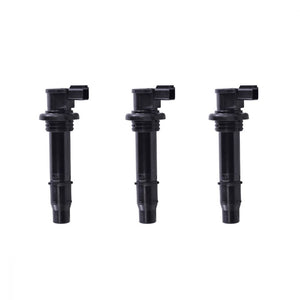

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
108120-R00
