RMStator Stator Pickup Coil Kit RMS900-108203

RMStator Stator Pickup Coil Kit RMS900-108203

Brand new Stator + Pickup Coil 300 ohms

• All products shipped are tested
• *All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included

• We offer a brand new pickup/pulser coil for you to repair your stator.
• Often unavailable from the OEM manufacturer

Technical Data

Stator :

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 13 mm
Length of wires stator to plug : 425 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : Yellow Between each Yellow = 0.5 ohms+/-20%
Alternator : Yellow to Ground = O.L. ON DISPLAY
Alternator : Green to each Yellow = 0.5 ohms+/-20%
Alternator : Black to Ground = 0.1 ohms+/-20%

Dimensions :
Height : 21 mm
Length : 27 mm
Width : 27 mm
Bracket center to center : 35 mm
Wires length : 400 mm

Other specifications :

Number of wires : 4
Number of pins : 4
Number of plugs : 1

Wire to wire resistance :
Blue/Yellow to Yellow/White = 300 ohms +/-20%
Green to Grey = 300 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-108203

Fitment:

• 2002 Ski-Doo Grand Touring 500 Sport Carb L/C
• 2002 Ski-Doo Grand Touring 600 Sport Carb L/C
• 2002 Ski-Doo Grand Touring 700 Carb L/C
• 1999-2000 Ski-Doo Grand Touring 700 Carb L/C
• 2002 Ski-Doo Legend 500F Fan Carb
• 2002 Ski-Doo Legend 600 SE Carb L/C
• 2002 Ski-Doo Legend 700 SE Carb L/C
• 2002 Ski-Doo Legend 800 SE RER Carb

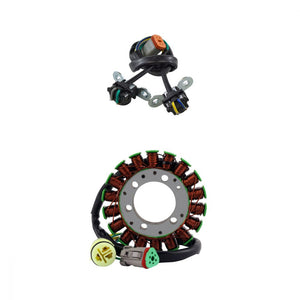

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
108203-R00
