RMStator Stator and CDI Box Kit RMS900-108205
RMStator Stator and CDI Box Kit RMS900-108205
Brand new Stator + CDI Box
- All shipped products are tested
- All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
- You must re-install your original connector and grommet
- Once your connector and grommet are re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Back Plate included
**With our 15 years experience we would advise:
Before purchasing our replacement stator please compare the picture from our add to your original part.
With these older sleds sometimes the motor or part has been swapped out, the best way to confirm compatibility is with a visual match.

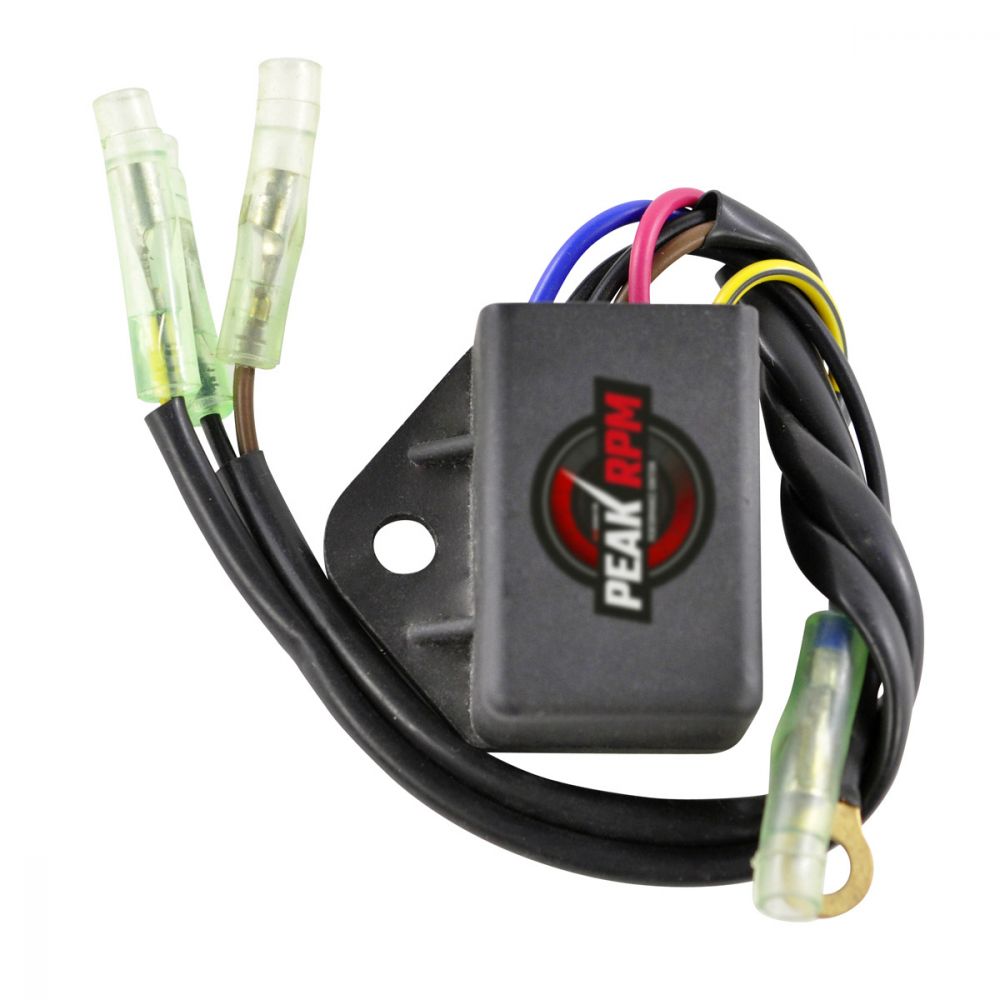

- Our PeakRPM CDI Box provides the optimal output for your ride
- Enjoy fast & easy installation with our plug & play OEM design
- OEM-grade electronic components and printed circuit boards for long-term reliability and performance
- 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying
Technical Data
Stator :
Dimensions:
Interior diameter: 40 mm
Exterior diameter: 108 mm
Thickness: 10 mm
Harness length stator to connectors: 225 mm
Other specifications:
Number of wires: 6
Number of plugs: 4
Number of pins: 6
Wire to wire resistance:
Alternator: Yellow to Yellow/Brown = 0.4 ohms +/-20%
Source: Black to Black/Yellow = 126 ohms +/-20%
Source 2: Black to Black/Red = 122 ohms +/-20%
Dimensions:
Height: 57 mm
Length: 85 mm
Width: 27 mm
Fixation holes center to center: 75 mm
Wires length: 140 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box.
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-108205
Fitment:
- 1991 Ski-Doo Citation 250 Carb F/C
- 1989-1990 Ski-Doo Formula Mach 1 583 Carb L/C
- 1992-1993 Ski-Doo Formula Plus X 583 Carb L/C
- 1989 Ski-Doo Mach 1 600 Carb L/C
- 1992 Ski-Doo Mach 1 600 Carb L/C
- 1991 Ski-Doo Tundra 250 Carb F/C
Note: Image is for reference only, actual product may vary slightly.
