RMStator Stator and CDI Box Kit RMS900-108214
Customer Ratings
RMStator Stator and CDI Box Kit RMS900-108214
RMStator Stator and CDI Box Kit RMS900-108214

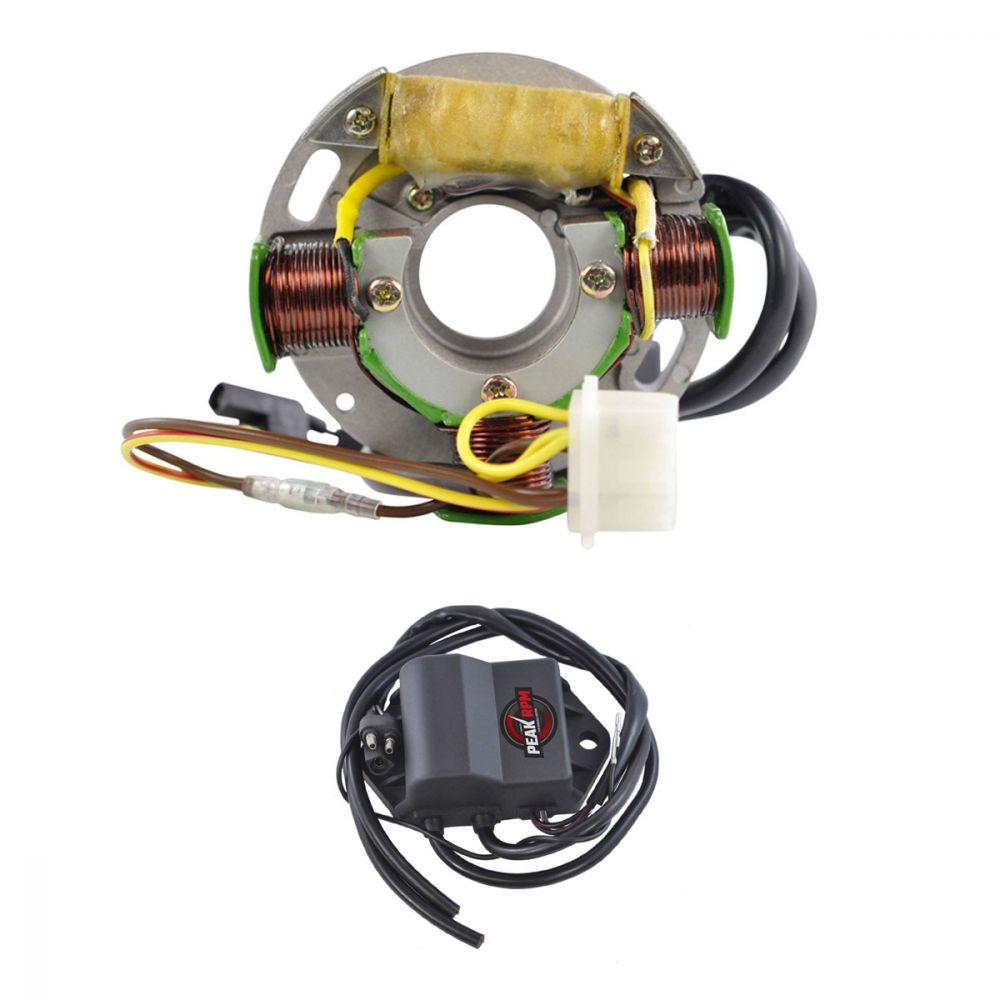

Brand new stator + CDI box
- All products shipped are tested
- All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- Back Plate included
- Our PeakRPM CDI Box provides the optimal output for your ride
- Enjoy fast & easy installation with our plug & play OEM design
- OEM-grade electronic components and printed circuit boards for long-term reliability and performance
- 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying
Technical Data
Stator :
Dimensions :
Interior diameter: 32 mm
Exterior diameter: 105 mm
Thickness: 16 mm
Length of wires stator to grommet: 80 mm
Length of wires grommet to plug: 200 mm
Other specifications :
Number of wires: 9
Number of plugs: 2
Number of pins: 9
Wire to wire resistance :
Alternator: Yellow to Yellow/Red = 0.4 ohms +/-20%
Source: Black/Red to Brown/White = 170 ohms +/-20%
Dimensions :
Height: 41 mm
Length: 110 mm
Width: 61 mm
Fixation holes center to center: 90 mm
Other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6
Please note: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box.
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-108214
Fitment:
- 2003 Polaris Edge 340 Carb F/C
- 1993-1997 Polaris Indy 340 GT Lite Carb F/C
- 1998 Polaris Indy 340 Touring Lite Carb F/C
- 1991-1998 Polaris Indy 340 Lite Carb F/C
- 1990 Polaris Indy 340 Sport
- 1990 Polaris Sport GT 340
- 1990 Polaris Sprint ES 340
- 1993-1994 Polaris Starlite Indy 250 Carb F/C
Note: Image is for reference only, actual product may vary slightly.
