NOTES:

Part Number: 07102
Fits Polaris Mid-Size Ranger (works with Lock & Ride); John Deere Mid-Size Gator (drill & bolt); Honda Pioneer 700 (drill & bolt); and beds 44"-48" inside bed measurement (drill & bolt)

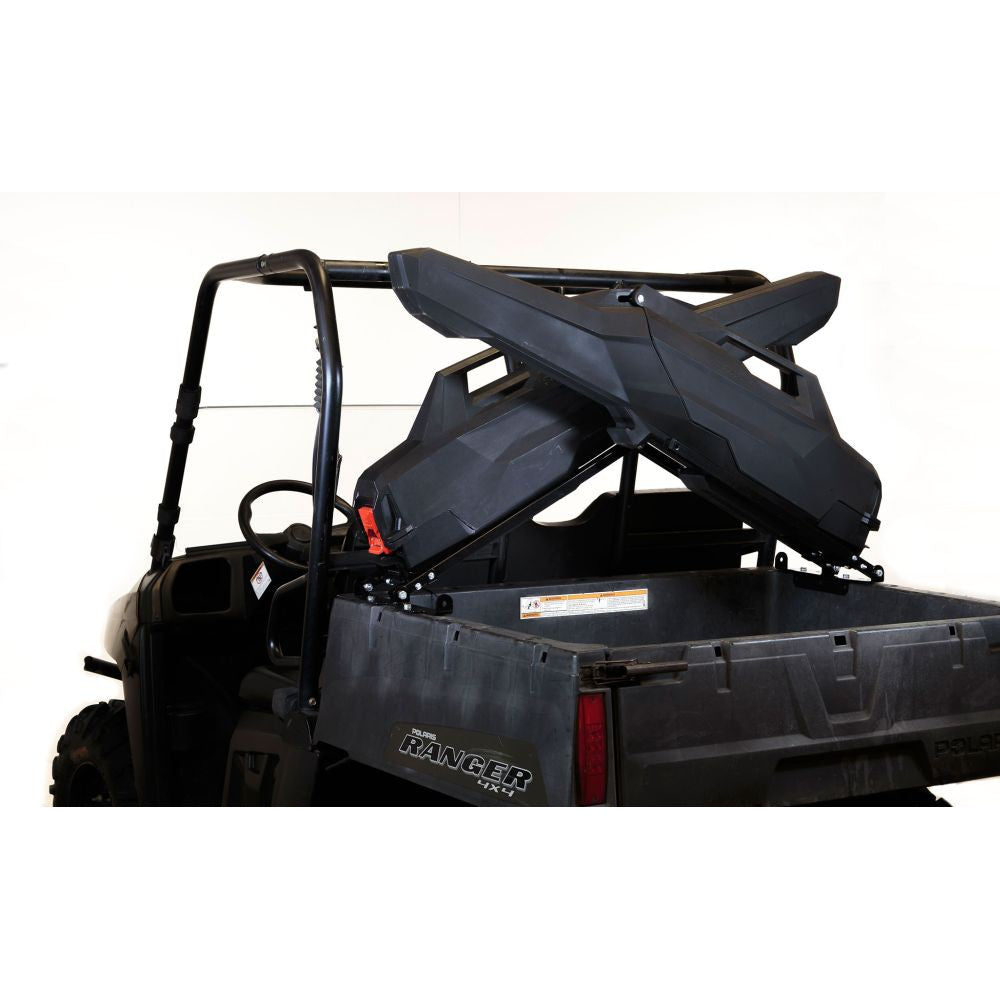

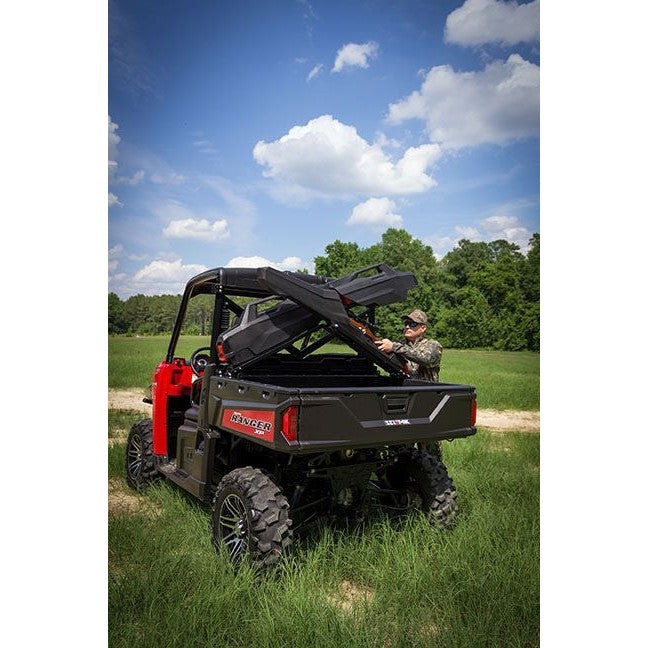

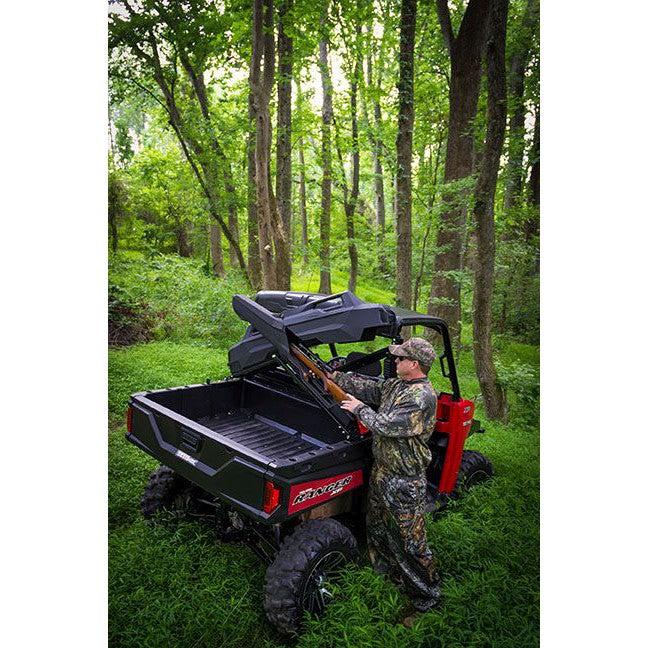

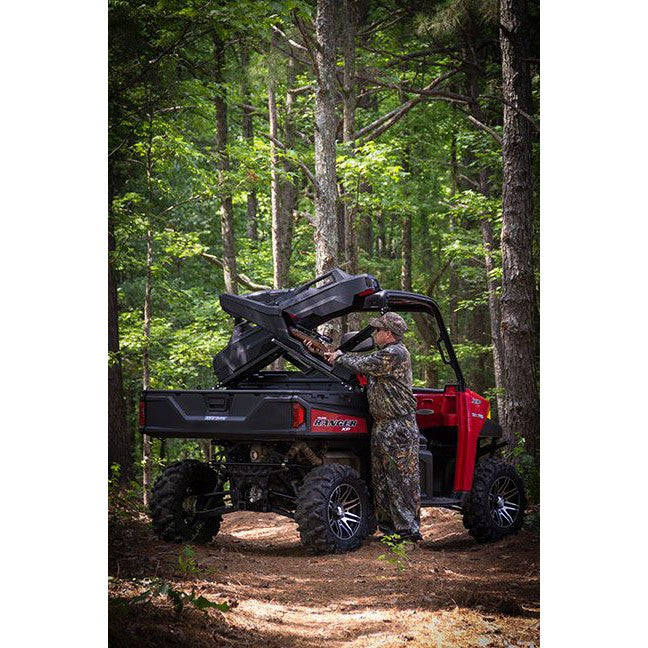

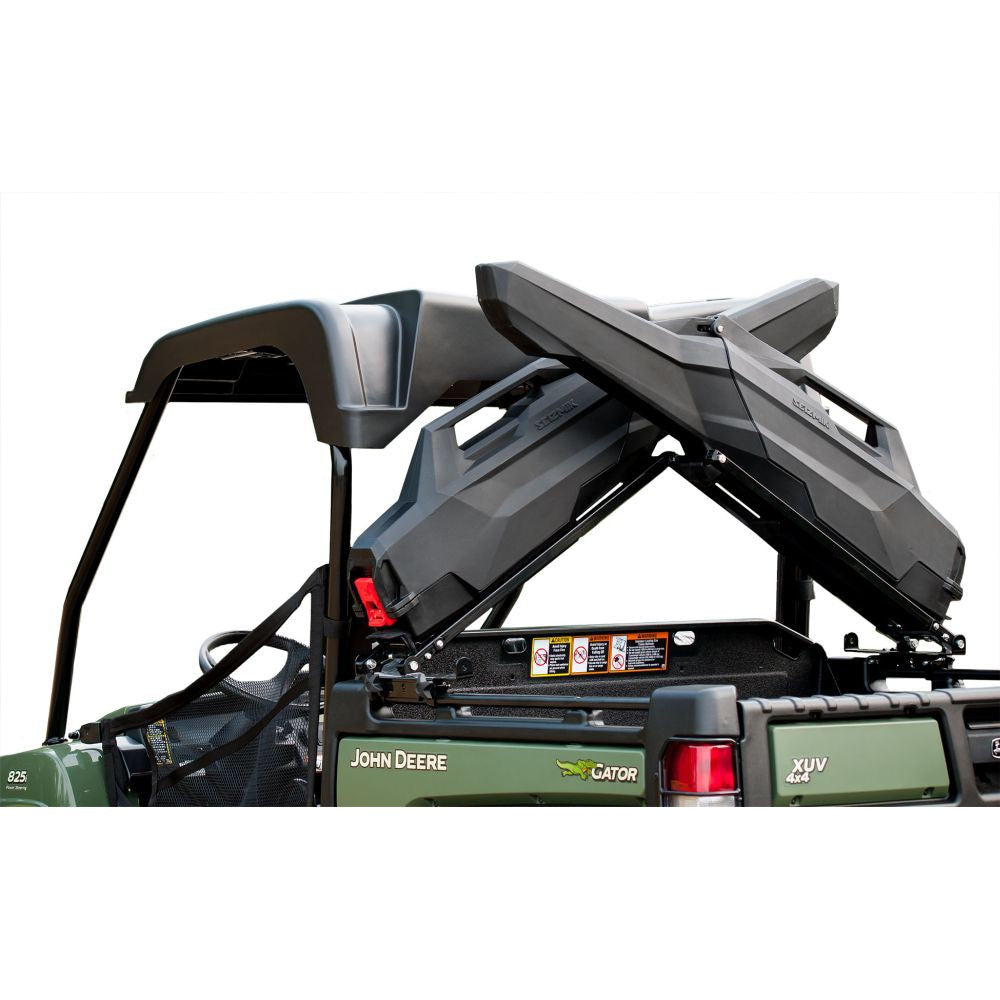

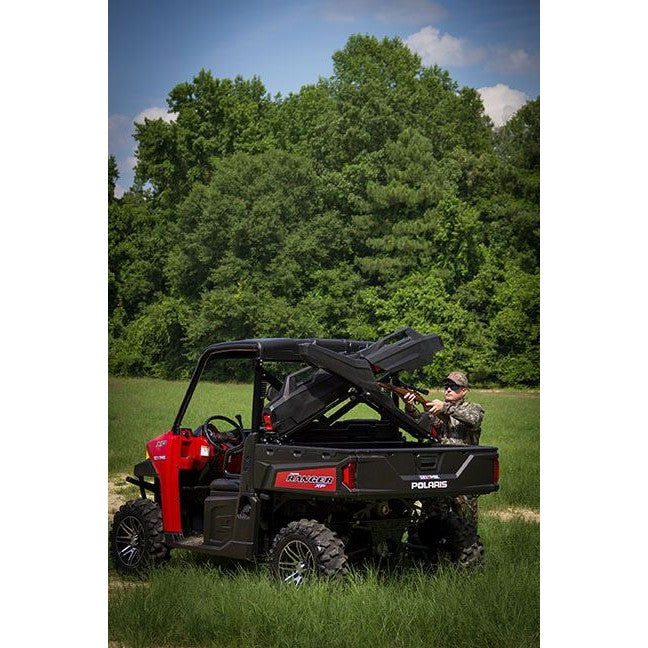

The Armory X Rack works in tandem with the Armory SST gun case to store and transport two weapons (requires two Armory SST cases and one Armory X Rack). The design of the system positions the cases over the dump bed of most vehicles, leaving the bed clear for gear or game. With the cases locked in place on the rack, the guns are always pointed up and away for superior muzzle control.

The Armory SST case is easily installed or removed from the Armory X Rack without the need for tools. A durable, glass-filled nylon lever is large enough to easily operate with gloves or mittens, and once released, the case lifts right out. With the Armory X Rack attached to both sides of the dump bed, its stiff, rigid, and strong-staying securely attached to the vehicle no matter how aggressive the terrain gets.

Features include:

• Rack holds up to 2 gun cases (sold separately)
• Heavy gauge steel frame holds gun cases steady under tough conditions
• Spring loaded binding for quick and secure case load and release
• Thick steel mounting plate installs quickly and easily
• Designed specifically for UTVs with safety in mind-gun barrels are kept facing up and away from users

Part?#?	Fitment
07101	Full Size Ranger ? works with Lock & Ride?
07102	Mid Size Ranger-works with Lock & Ride?, or drill and bolt in for Mid Size Gator, Pioneer 700, beds 44"- 48"?
07103	Kubota RTV X, beds 55"- 58"? ? drill & bolt in
07104	Pioneer 1000, Pro Mule, Defender, beds 51.5"-55.5"? ? drill & bolt in
07105	John Deere Full Size Gator ? clamps attach to bed rails or drill and bolt in to steel beds

Brand: Seizmik
Part Number: 07102

Fitment:

• 2023 Honda Pioneer 700 SXS700M2 Forest
• 2017-2023 Honda Pioneer 700 SXS700M2D Deluxe
• 2014-2023 Honda Pioneer 700
• 2023 Honda Pioneer 700-4 SXS700M4 Forest
• 2015 Honda Pioneer 700-4 SXS700M4
• 2017-2023 Honda Pioneer 700-4 SXS700M4D Deluxe
• 2016-2023 Honda Pioneer 700-4
• 2019-2022 John Deere Gator XUV 560E 4X4
• 2019-2022 John Deere Gator XUV 560E 4x4 S4 4 Passenger
• 2018-2022 John Deere Gator XUV 590E 4X4
• 2018-2022 John Deere Gator XUV 590E 4x4 S4 4 Passenger
• 2018-2022 John Deere Gator XUV 590M 4x4 EPS
• 2018-2022 John Deere Gator XUV 590M 4x4 EPS S4 4 Passenger
• 2019 John Deere Gator XUV 590M Special Edition
• 2014 Polaris Ranger 400 Midsize
• 2010-2013 Polaris Ranger 400 Midsize
• 2011-2013 Polaris Ranger 500 Midsize EFI
• 2017-2019 Polaris Ranger 500 Midsize EFI
• 2015-2018 Polaris Ranger 570 EPS Mid-Size
• 2020 Polaris Ranger 570 Mid-Size
• 2014-2015 Polaris Ranger 570 Mid-Size
• 2017-2019 Polaris Ranger 570 Mid-Size
• 2013-2015 Polaris Ranger 800 Midsize EFI
• 2010 Polaris Ranger Crew 500 4X4 EFI
• 2011-2013 Polaris Ranger Crew 500 Midsize
• 2015 Polaris Ranger Crew 570 EPS Mid-Size
• 2015 Polaris Ranger Crew 570 LE EFI EPS Mid-Size
• 2014-2017 Polaris Ranger Crew 570 Mid-Size
• 2018-2019 Polaris Ranger Crew 570-4 4X4 Mid-Size
• 2020 Polaris Ranger Crew 570-4 4x4 Premium
• 2018-2019 Polaris Ranger Crew 570-6 4X4 Mid-Size
• 2015 Polaris Ranger Crew SP 570 Premium EPS Mid-Size

Note: Image is for reference only, actual product may vary slightly.
