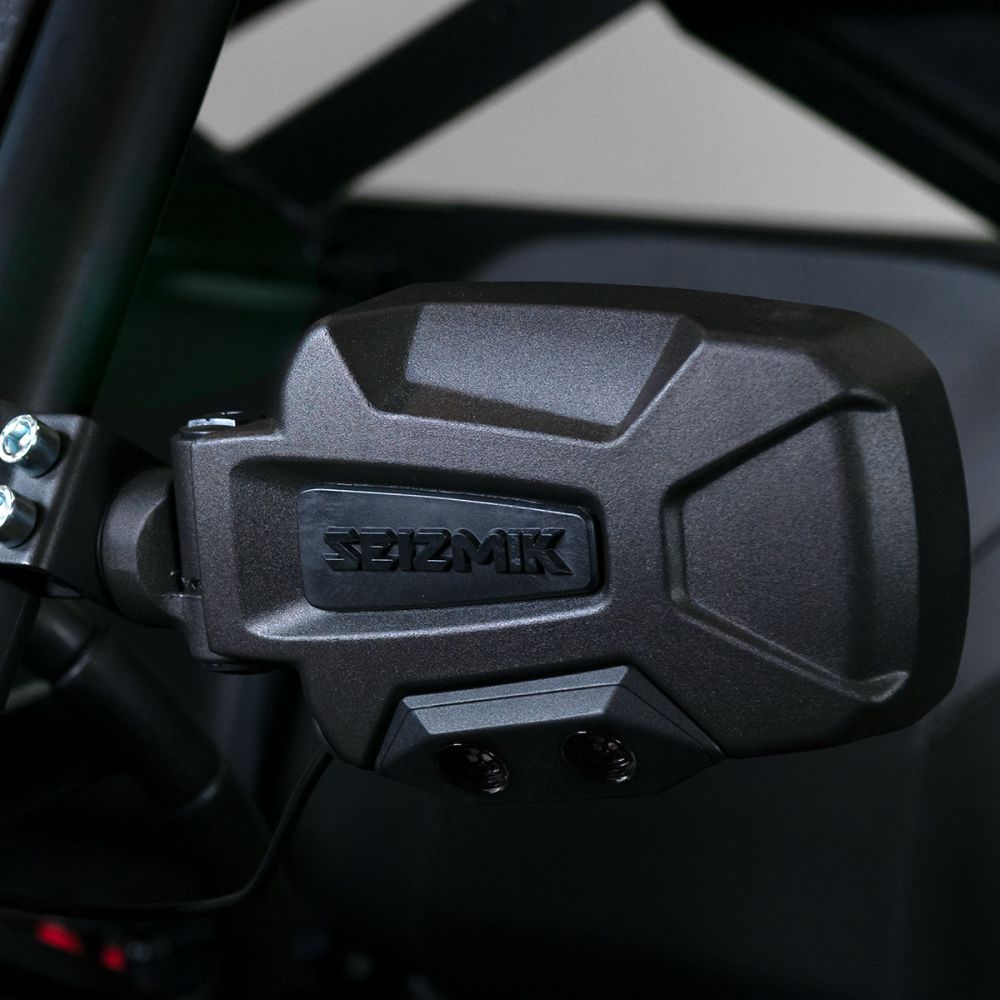

Seizmik's Pursuit Night Vision Series Side View Mirrors with Dual Mode LEDs

Seizmik's best selling mirror now comes equipped with white and green Cree LED chips to provide peripheral illumination to the mid-forward and side ground areas around the UTV.

FITMENT INFO

Part?#	ROPS SIZE/STYLE	VEHICLES INCLUDED
18087	2" with shims for 1.875" Round Tube ROPS	Can-Am Commander; Cam-Am Maverick; Kawasaki Mule Pro; Kubota RTV 500/900/1140; Kubota RTV-X 900/1120D/1140; and Yamaha Wolverine

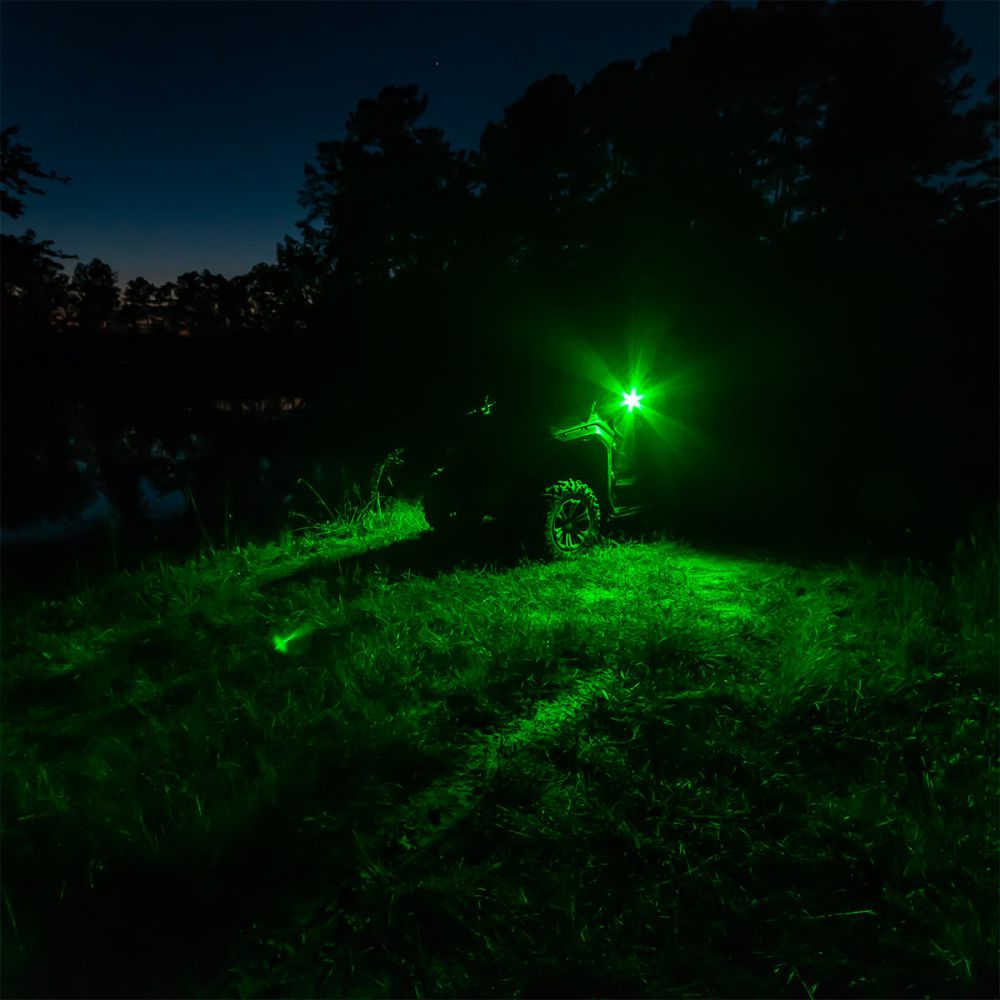

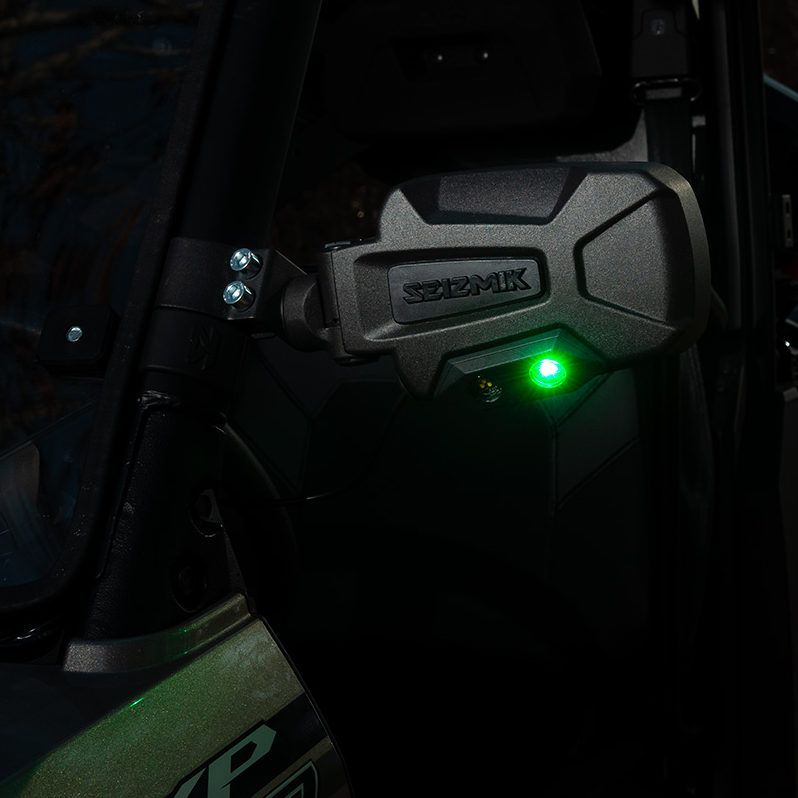

Green Light

Used for preserving night vision and providing more visual acuity and better differentiation between colors at low-light levels.

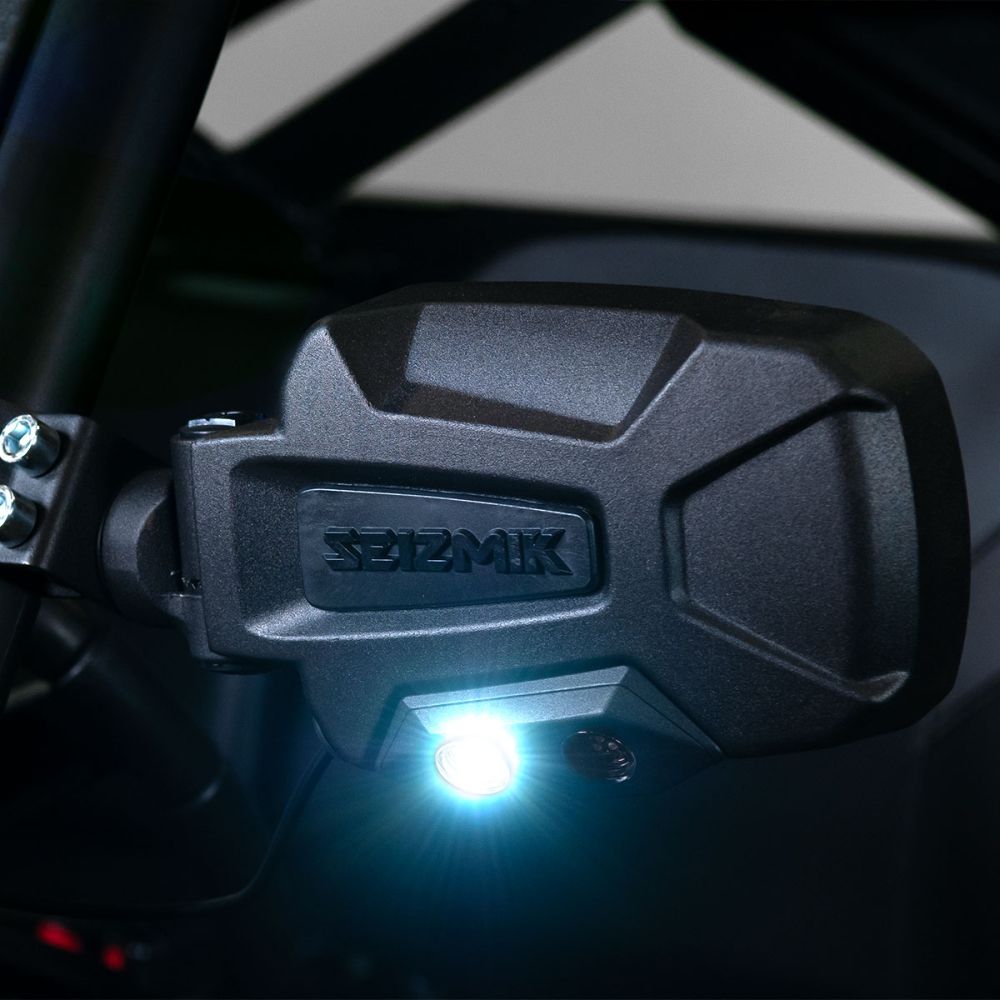

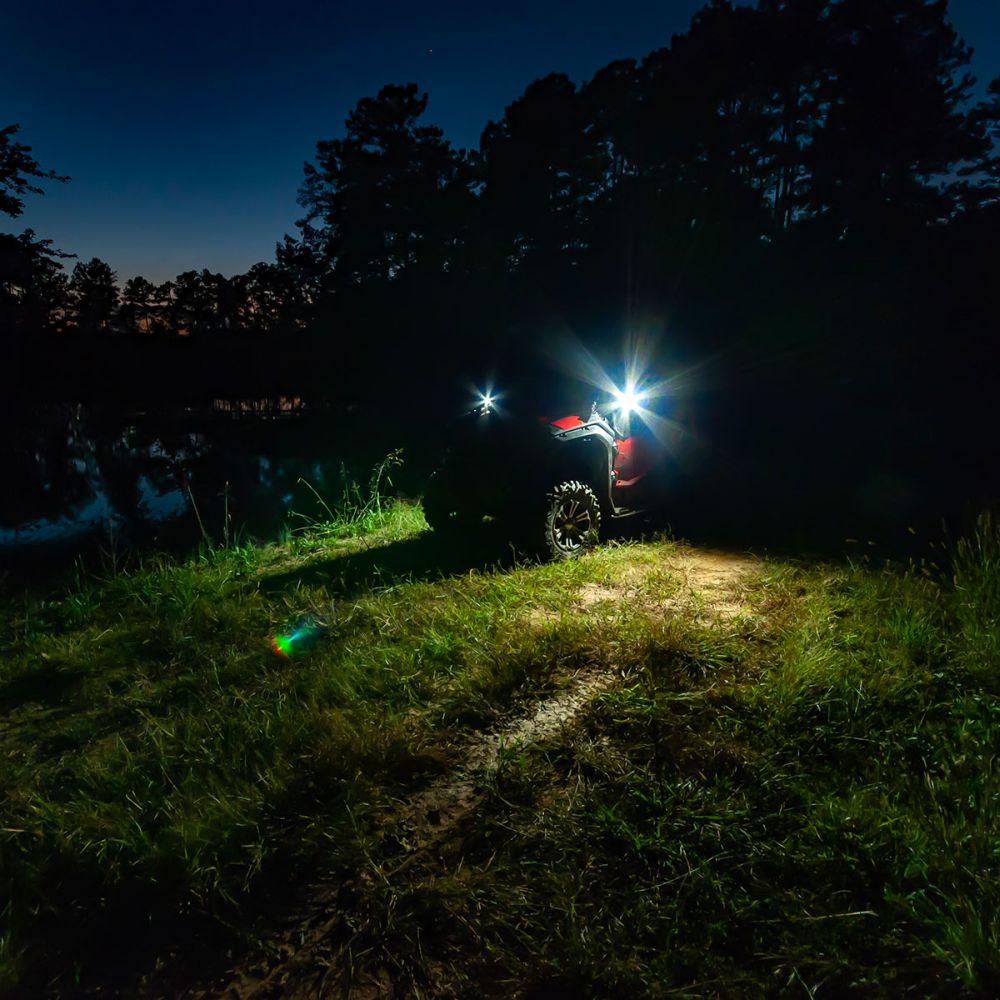

White Light

Used for lighting up the mid-forward area not covered by headlights or light bars, increasing the peripheral illumination.

PERIPHERAL ILLUNINATION

Illuminates the ground area so drivers and passengers can see the conditions they are stepping onto/into.

Strategically placed to provide extended peripheral vision illumination to the mid-forward and side ground areas.

Allows drivers to see what's next to them on tight paths.

All Seizmik mirrors come with a 100% Unlimited Lifetime Warranty-regardless of how the mirror was damaged. Every mirror, no matter what-even if your cow eats it or you shoot it (actual customer warranty issues-we can't make this stuff up)!

LED FEATURES

1. A CAST ALUMINUM HOUSING with IP68 water resistant rating.
2. DUAL COLOR MODE features Green Night Vision for better visual acuity at low light levels and White for bright illumination when needed.
3. WHITE LEDs:
   1. Chips: 3x 11.9W Cree? XBD
   2. Lumens: 565LM
4. GREEN LEDs:
   1. Chips: 3x 6.6W Cree? XBD
   2. Lumens: 266LM

MIRROR FEATURES

1. CAST ALUMINUM HOUSING - Ultra tough metal housing can withstand the most extreme punishment.
2. POSITION TENSION ADJUSTMENT BOLTS - Always be able to keep it tight as new.
3. FULL BREAKAWAY GEOMETRY - Designed to break away during impacts to minimize damage.
4. PRE-SET POSITION DETENTS - Delrin? Detents allow the mirror to be quickly popped back into place.
5. ADAPTIVE 360? BRACKET ROTATION - Will accommodate any angle roll cage pillar and provides optimal viewing position, so a user can mount it high or low and adjust to perfect viewing position.
6. LOW PROFILE MOUNTING BRACKETS - Allow mirrors to work with most any windshield.
7. ENCLOSED FLOATING MIRROR MOUNT - Mirror glass may be independently adjusted inside housing and is replaceable.
8. SHATTER-RESISTANT SAFETY GLASS - For maximum safety.
9. CONVEX MIRROR SURFACE - Provides wide viewing angle and image stability.
10. WEATHER SEALED CAPS - Removable caps protect hardware from moisture and debris (red, yellow, green, and blue color kits available).
11. FITMENTS FOR MOST ANY VEHICLE - Round Tube ROPS; Polaris? Pro-Fit ROPS; and CAN-AM? Profiled ROPS.

Notched Delrin? detents allow the mirror to fold in when hit and be returned to its original position in one move.

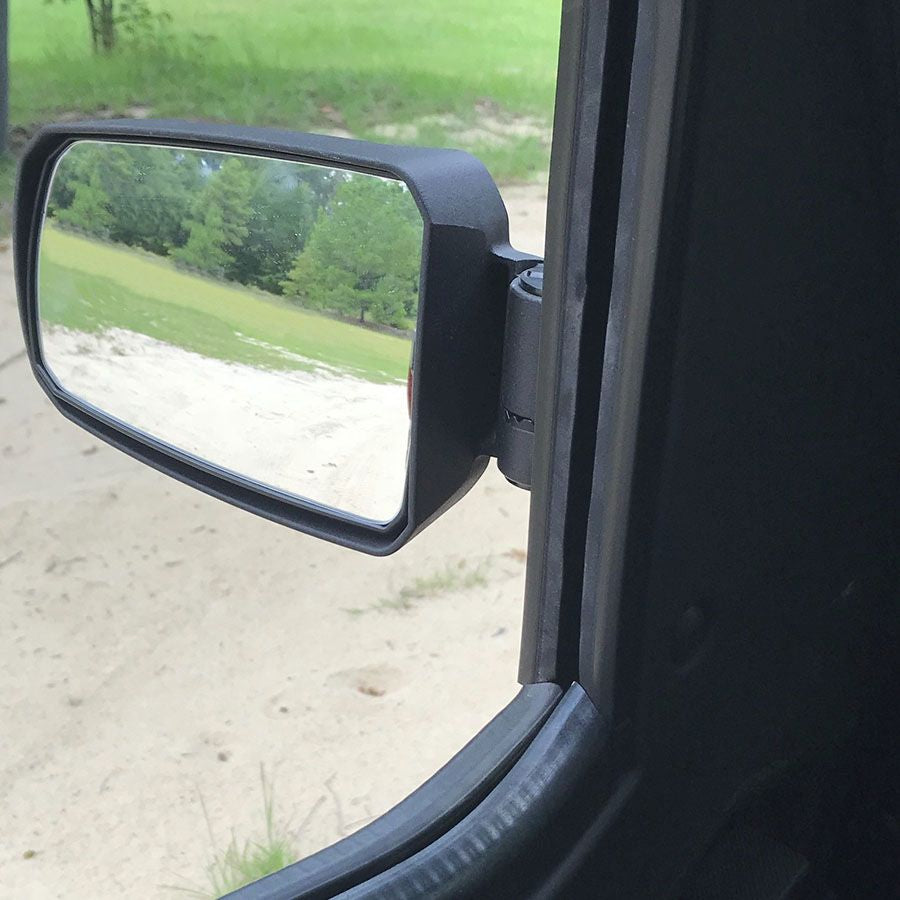

The adjustable independent glass stays where you set it, keeping riders focused on the trail and not their mirror.

The Pursuit mirrors are fully adjustable and serviceable. Independent convex safety glass provides a wide viewing angle and can be replaced without having to replace the whole mirror.

COLOR SEAL/CAP KITS AVAILABLE*

*Sold separately-black comes standard with the mirrors.

Red ? 18074

Yellow ? 18075

Green ? 18076

Blue ? 18077

Brand: Seizmik
Part Number: 18087

Fitment:

• 2013-2020 Can-Am Commander 1000 4x4 DPS
• 2014-2020 Can-Am Commander 1000 4x4 LTD
• 2011-2013 Can-Am Commander 1000 4x4 X
• 2011-2020 Can-Am Commander 1000 4x4 XT
• 2013-2017 Can-Am Commander 1000 4x4 XTP
• 2012-2014 Can-Am Commander 1000
• 2013-2020 Can-Am Commander 800 4x4 DPS
• 2011-2020 Can-Am Commander 800
• 2012-2020 Can-Am Commander 800R 4x4 XT DPS
• 2014-2018 Can-Am Commander Max 1000 4x4 DPS
• 2016-2020 Can-Am Commander Max 1000 4x4 LTD
• 2014-2020 Can-Am Commander Max 1000 4x4 XT
• 2017-2020 Can-Am Commander Max 800R 4x4 DPS
• 2021 Honda Talon 1000R SXS10S2RD FOX Live Valve
• 2019-2020 Honda Talon 1000R
• 2021 Honda Talon 1000X SXS10S2XD FOX Live Valve
• 2019-2020 Honda Talon 1000X
• 2020 Honda Talon 1000X-4 SXS10S4 FOX Live Valve
• 2020 Honda Talon 1000X-4
• 2007 Kawasaki Mule 3010 KAF620E 4x4
• 2007 Kawasaki Mule 3010 KAF620J 4x4 Trans
• 2007 Kawasaki Mule 3010 KAF950B 4x4 Diesel
• 2007 Kawasaki Mule 3010 KAF950C 4x4 Trans Diesel
• 2022 Kawasaki Mule 4000
• 2009-2011 Kawasaki Mule 4000
• 2022 Kawasaki Mule 4010 KAF620 4x4
• 2009-2011 Kawasaki Mule 4010 KAF620 4x4
• 2022 Kawasaki Mule 4010 KAF620 4x4 FE
• 2022 Kawasaki Mule 4010 KAF620R 4x4 Trans
• 2009-2011 Kawasaki Mule 4010 KAF620R 4x4 Trans
• 2022 Kawasaki Mule 4010 KAF620SEF 4x4 Trans Camo
• 2009-2011 Kawasaki Mule 4010 KAF950F 4x4 Diesel
• 2009-2011 Kawasaki Mule 4010 KAF950G 4x4 Trans Diesel
• 2016-2017 Kawasaki Mule PRODX KAF1000 Diesel
• 2016-2017 Kawasaki Mule PRODX KAF1000 Diesel EPS
• 2016-2017 Kawasaki Mule PRODX KAF1000 Diesel LE EPS
• 2016-2017 Kawasaki Mule PRODXT KAF1000 Diesel
• 2016-2017 Kawasaki Mule PRODXT KAF1000 Diesel EPS
• 2016-2017 Kawasaki Mule PRODXT KAF1000 Diesel LE EPS
• 2016-2017 Kawasaki Mule PROFX KAF820
• 2022-2023 Kawasaki Mule PROFX KAF820
• 2016-2017 Kawasaki Mule PROFX KAF820 EPS
• 2022-2023 Kawasaki Mule PROFX KAF820 EPS
• 2016-2017 Kawasaki Mule PROFX KAF820 EPS LE
• 2022-2023 Kawasaki Mule PROFX KAF820 EPS LE
• 2018 Kawasaki Mule PROFXR KAF820
• 2022 Kawasaki Mule PROFXR KAF820
• 2015-2017 Kawasaki Mule PROFXT KAF820
• 2022-2023 Kawasaki Mule PROFXT KAF820
• 2015-2017 Kawasaki Mule PROFXT KAF820 EPS
• 2022-2023 Kawasaki Mule PROFXT KAF820 EPS
• 2022-2023 Kawasaki Mule PROFXT KAF820 EPS Camo
• 2015-2017 Kawasaki Mule PROFXT KAF820 EPS LE
• 2022-2023 Kawasaki Mule PROFXT KAF820 EPS LE
• 2017 Kawasaki Mule PROFXT KAF820 Ranch Edition
• 2022-2023 Kawasaki Mule PROFXT KAF820 Ranch Edition
• 2022-2023 Kawasaki Mule PROFXT KAF820 Ranch Edition Platinum
• 2008-2009 Kawasaki Teryx 750 KRF750 4x4
• 2011-2013 Kawasaki Teryx 750 KRF750 4x4
• 2021-2022 Kawasaki Teryx 750 KRF750 4x4
• 2013 Kawasaki Teryx 750 KRF750 4x4 LE Sport FI
• 2009-2011 Kawasaki Teryx 750 KRF750 4x4 LE Sport FI
• 2022 Kawasaki Teryx 750 KRF750 4x4 Sport
• 2021 Kawasaki Teryx 800 KRF800 Camo
• 2021 Kawasaki Teryx 800 KRF800 LE
• 2014-2020 Kawasaki Teryx 800 KRF800 LE
• 2022 Kawasaki Teryx 800 KRF800 S LE
• 2014-2020 Kawasaki Teryx 800
• 2021-2022 Kawasaki Teryx KRX 1000 KRF1000 Special Edition
• 2021-2022 Kawasaki Teryx KRX 1000 KRF1000 Trail Edition
• 2020-2022 Kawasaki Teryx KRX 1000
• 2012-2013 Kawasaki Teryx4 750 KRT750A 4x4
• 2012-2013 Kawasaki Teryx4 750 KRT750B 4x4 EPS
• 2014-2020 Kawasaki Teryx4 800 KRT800
• 2021-2022 Kawasaki Teryx4 800 KRT800 Camo
• 2014 Kawasaki Teryx4 800 KRT800 LE
• 2015-2020 Kawasaki Teryx4 800 KRT800 LE
• 2021-2022 Kawasaki Teryx4 800 KRT800 LE
• 2022 Kawasaki Teryx4 800 KRT800 S LE
• 2021-2022 Kawasaki Teryx4 800
• 2018-2020 Kubota RTV-XG850 Sidekick
• 2022 Polaris RZR Pro R Premium
• 2022 Polaris RZR Pro R Sport
• 2022 Polaris RZR Pro R Ultimate
• 2022 Polaris RZR Pro R Ultimate Launch Edition
• 2022 Polaris RZR Pro XP Premium
• 2022 Polaris RZR Pro XP Sport
• 2022 Polaris RZR Pro XP Ultimate
• 2022 Polaris RZR PRO XP 4 Premium
• 2022 Polaris RZR PRO XP 4 Sport
• 2022 Polaris RZR PRO XP 4 Ultimate
• 2022 Polaris RZR Turbo R Premium
• 2022 Polaris RZR Turbo R Ultimate
• 2022 Yamaha Viking 700 YXM700P 4x4 FI EPS
• 2022 Yamaha Viking 700 YXM700P 4x4 FI Ranch Edition EPS
• 2022 Yamaha Viking 700 YXM700PHH 4x4 Hunter Edition FI EPS
• 2022 Yamaha Viking VI YXC700PHH 4x4 Hunter Edition FI EPS
• 2017 Yamaha Wolverine YXE70 4x4 FI EPS
• 2016-2018 Yamaha Wolverine
• 2010 Yamaha Wolverine 450 YFM450FX 4x4
• 2021 Yamaha Wolverine RMAX2 1000 YXE10
• 2021-2022 Yamaha Wolverine RMAX2 1000 YXE10 Limited Edition
• 2022 Yamaha Wolverine RMAX2 1000 YXE10 R-Spec
• 2022 Yamaha Wolverine RMAX2 1000 YXE10 Sport
• 2021-2022 Yamaha Wolverine RMAX2 1000 YXE10 XT-R
• 2021 Yamaha Wolverine RMAX4 1000 YXF10
• 2021-2022 Yamaha Wolverine RMAX4 1000 YXF10 Limited Edition
• 2022 Yamaha Wolverine RMAX4 1000 YXF10 R-Spec
• 2021-2022 Yamaha Wolverine RMAX4 1000 YXF10 XT-R
• 2016-2018 Yamaha Wolverine R-Spec YXE70 4x4 FI EPS
• 2017 Yamaha Wolverine R-Spec YXE70 4x4 FI EPS SE
• 2016-2017 Yamaha Wolverine R-Spec
• 2019-2020 Yamaha Wolverine X2 850 YXE85 4x4 R-Spec
• 2021-2022 Yamaha Wolverine X2 850 YXE85 4x4 R-Spec
• 2021-2022 Yamaha Wolverine X2 850 YXE85 4x4 XT-R
• 2020 Yamaha Wolverine X2 R-Spec YXE85 4x4 XT-R
• 2019 Yamaha Wolverine X2 R-Spec YXF85 4x4 SE
• 2019-2020 Yamaha Wolverine X2 R-Spec
• 2020 Yamaha Wolverine X4 4x4 XT-R
• 2021 Yamaha Wolverine X4 YXF85 4x4
• 2018-2020 Yamaha Wolverine X4 YXF85 4x4 SE
• 2018-2020 Yamaha Wolverine X4
• 2022 Yamaha Wolverine X4 850 YXF85 4x4 R-Spec
• 2021-2022 Yamaha Wolverine X4 850 YXF85 4x4 XT-R

Note: Image is for reference only, actual product may vary slightly.
