KFI Products Snow Plow Kit For Polaris 570 Sportsman Touring 2014-2026

NOTES:

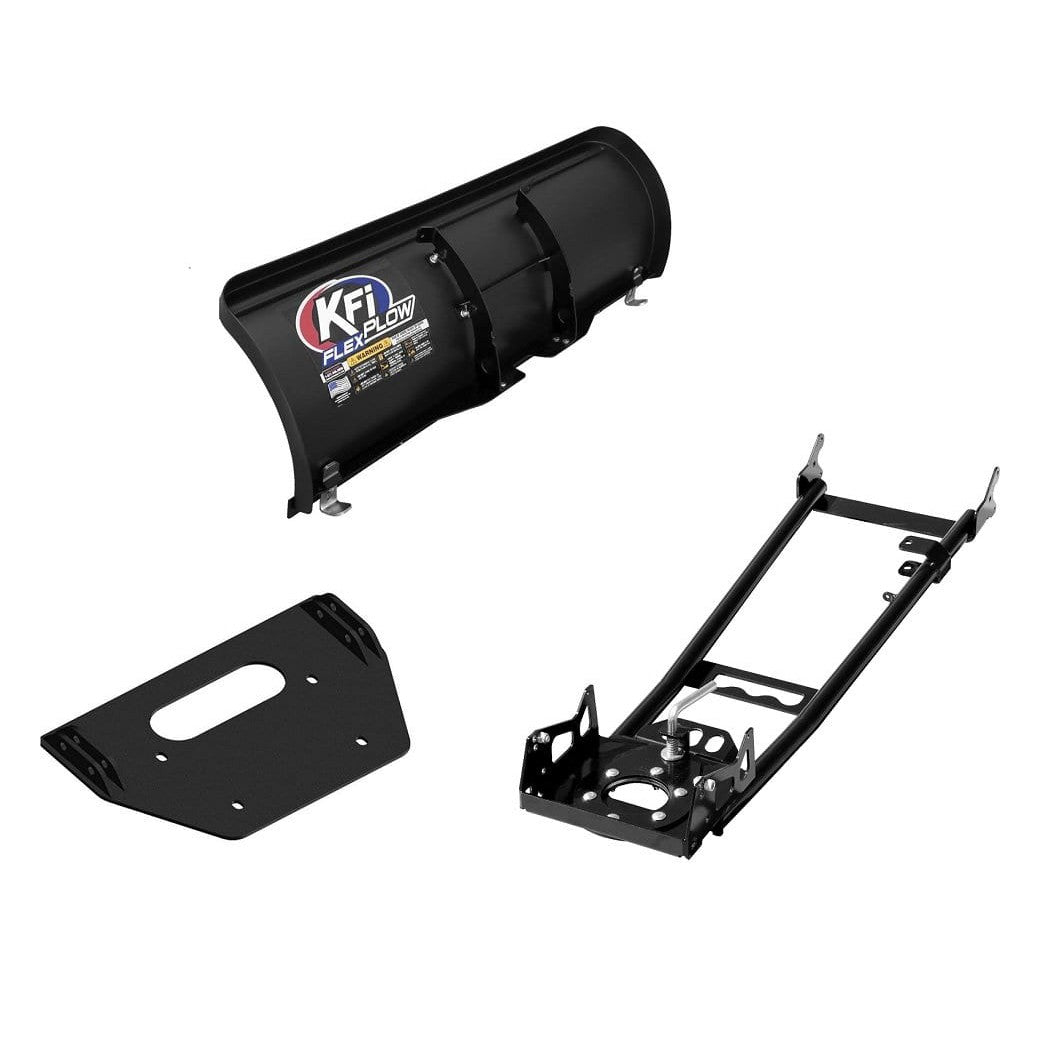

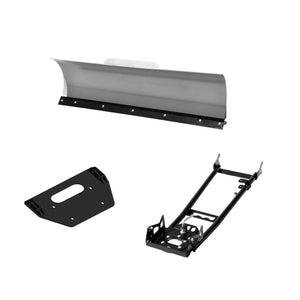

Introducing the ultimate snow plow kit: Conquer winter with ease using our high-performance snow plow kit. Designed for efficiency and durability, it effortlessly clears snow from driveways and pathways, ensuring hassle-free winters for years to come. We recommend measuring from outside to outside tire to ensure your blade is the proper size for your vehicle. Always size up from your measurement. Includes Mount, Push Tube, and Blade.

• Grade 50 steel construction.
• Shot-blasted and powder-coated black for supreme durability and a premium finish.
• Easy to install.
• Complete installation instructions and hardware included.
• Made in USA.

• Mid-Mount Design with 40-50% more lift height than our competitors Mid-Mount System.
• 100% MADE IN USA.
• Heavy Duty 1-1/2" 11 Gage Steel Tubing.
• Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings.
• 6" Diameter POM Injection Molded Rotator Bushing.
• Easy-Pull Pin Blade angle adjustment.
• Multi-position Plow Lift Bracket.
• 6 five degree blade pitch adjustments.
• 5 blade angle positions that rotate the blade up to 25 Degrees.
• Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability.
• Complete installation instructions included.
• All mounting hardware included.
• Also Works with Cycle Country ATV Mid-Mounts.
• 2-Year KFI Warranty.

• 100% MADE IN USA.
• Pushes snow straight ahead or to the sides up to 25 degrees.
• Added gussets for the wider width.
• The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap.
• Measures 16″ Vertical blade face height with an approximate 21″ height with snow flap.
• Fully-adjustable blade skids with bolt-on brackets.
• Heavy duty 3″-diameter grade-50 steel skid plates.
• Blade Constructed of 11 ga steel.
• 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube.
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability.
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
• Wear Bar attached with Heavy Duty Grade 8 Bolts.
• 2-Year KFI Warranty.

Pro-Poly Blade Description:

• Includes a 7″ high 2-ply top rubber flap.
• 100% MADE IN USA.
• Dual Curvature face for supreme snow moving.
• Measures 21in Vertical blade face height with an approximate 7″ height with snow flap.
• Fully-adjustable blade skids with bolt-on brackets.
• Heavy duty 3″-diameter grade-50 steel skid plates.
• Flexible Heavy Duty Black Poly face.
• 3/16in Grade 50 Steel Rib and Frame construction.
• Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability.
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
• Wear Bar attached with Heavy Duty Grade 8 Bolts.
• Complete installation instructions included.
• Works with KFI ATV & UTV Tubes.
• Includes Plow Markers.
• 2-Year KFI Warranty.

Brand: KFI
Pushtube Part Number: 105000
Mount Part Number: 106020

Fitment:

• 2004-2005 Polaris ATP 330 4X4
• 2004-2005 Polaris ATP 500 4x4 HO
• 1999 Polaris Diesel 445
• 2003-2006 Polaris Magnum 330 4X4
• 1998-2000 Polaris Sportsman 335
• 2001-2005 Polaris Sportsman 400
• 2011-2014 Polaris Sportsman 400
• 2016-2026 Polaris Sportsman 450
• 2006-2007 Polaris Sportsman 450 4X4
• 1996-2013 Polaris Sportsman 500
• 2014-2026 Polaris Sportsman 570
• 2014-2026 Polaris Sportsman 570 Touring
• 2003-2005 Polaris Sportsman 600
• 2002-2008 Polaris Sportsman 700 EFI
• 2005-2014 Polaris Sportsman 800
• 2015 Polaris Sportsman ETX
• 2015-2020 Polaris Sportsman SP 570
• 2015-2019 Polaris Sportsman X2 570
